PMP 600 V

Article: 00141727

Vertical measuring projector

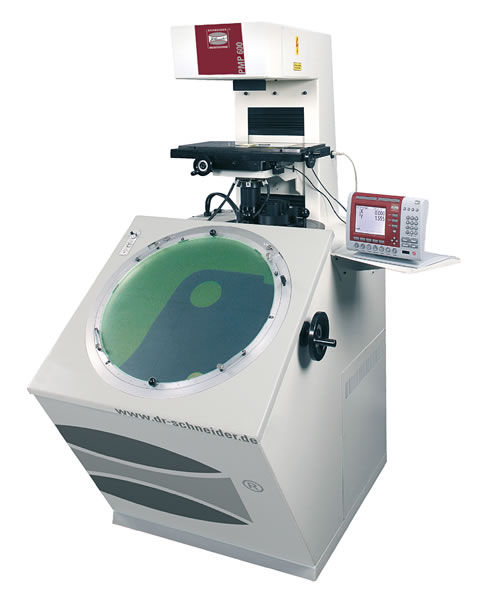

The PMP 600 is a vertical measuring projector featuring a large-scale display of the work-piece. For quick objective change, a triple revolving nosepiece is provided. Quick adjustment is possible with the measuring range. The revolving nosepiece is designed for accommodating different objectives. The screen measures 600-mm and features engraved crosshairs. Transmitted illumination is made possible with a cold-light filter. There is also incident illumination caused by two-core optical fiber and a cold-light source. There are available accessories for this projector, including a pair of precision Vee blocks, darkening device, and adjustment plate within ± 6°.

M3 measurement software is available as an option. It comes with image processing characteristics and is ideally installed on a touchscreen panel PC. Other options include a motorized adjustment of three axes, laterally displaced lifting column, digital angle indicator, and more.

Specifications

  • Options: vertical
