KBN135C

Article: 00013860

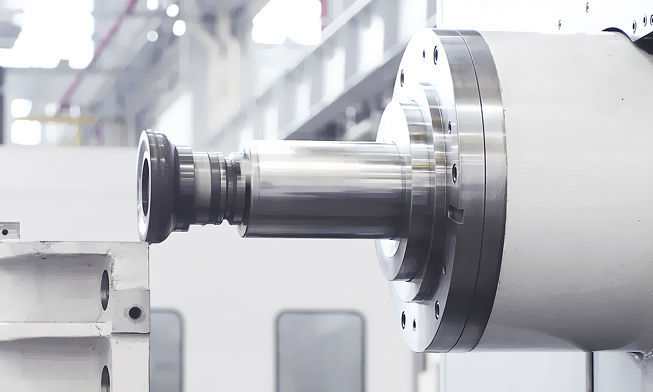

CNC boring machine / 5-axis / horizontal / column type

Features

Single unit bed for X and Z axis for ultra-precision (KB135)
Movable column structure for high-load, heavy duty cutting needs (KB135C)
Selectable X and Y axis of up to 1,000mm (39.3?) and 500mm (19.6?) respectively
3-step gear drive main spindle for heavy duty cutting
Optimal boring capability with W-axis maximum travel of 700mm(27.5?)
Equipped with standard linear and rotary scales for ultra-precision

Specifications

  • Control type: CNC
  • Number of axes: 5-axis
  • Spindle orientation: horizontal
  • Structure: column type
  • X travel: 3000 mm
  • Y travel: 2000 mm
  • Z travel: 1600 mm
  • Power: Min.: 18.5 kW (24.81 hp)

Other items
