Air/oil lubrication system / minimal quantity

Minimal air/oil system lubrication

Specifications:
- Air supply pressure: 5 ÷ 8 bar (73.5 ÷ 117.6 psi)
- Working temperature: -5 °C ÷ +55 °C (+23 °F ÷ +131 °F )
- Working humidity: 90% max
- Oil viscosity at working temperature: 32 - 320 cSt (150 ÷ 1480 SUS)
- Conservation temperature: -20 °C ÷ +65 °C (-4 °F ÷ 149 °F)


Designed for high performance at a low cost, it is distinguished by its compactness.

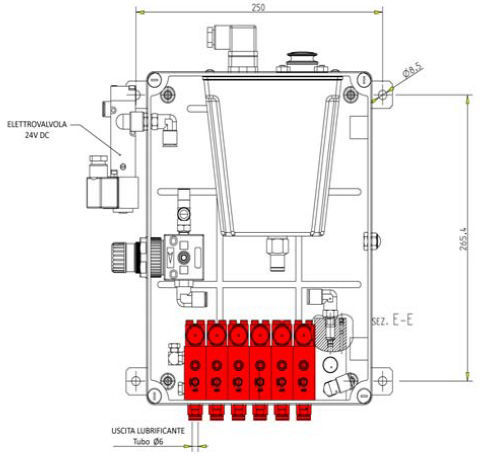

The system comprises a pneumatically controlled mini-pump and the mixer base. The mini-pump can be manually regulated to cover a wide range of needs (0-30 mm³). The modularity of the system allows extreme versatility by allowing different numbers of base mixing-manifolds to be installed accordingly.

Specifications

  • Lubricant: air/oil
  • Type: minimal quantity
