Chain Conveyors

Maschinenbau Kitz Gmbh

  • Chain conveyor / horizontal
  • Chain conveyor / horizontal
  • Chain conveyor / horizontal

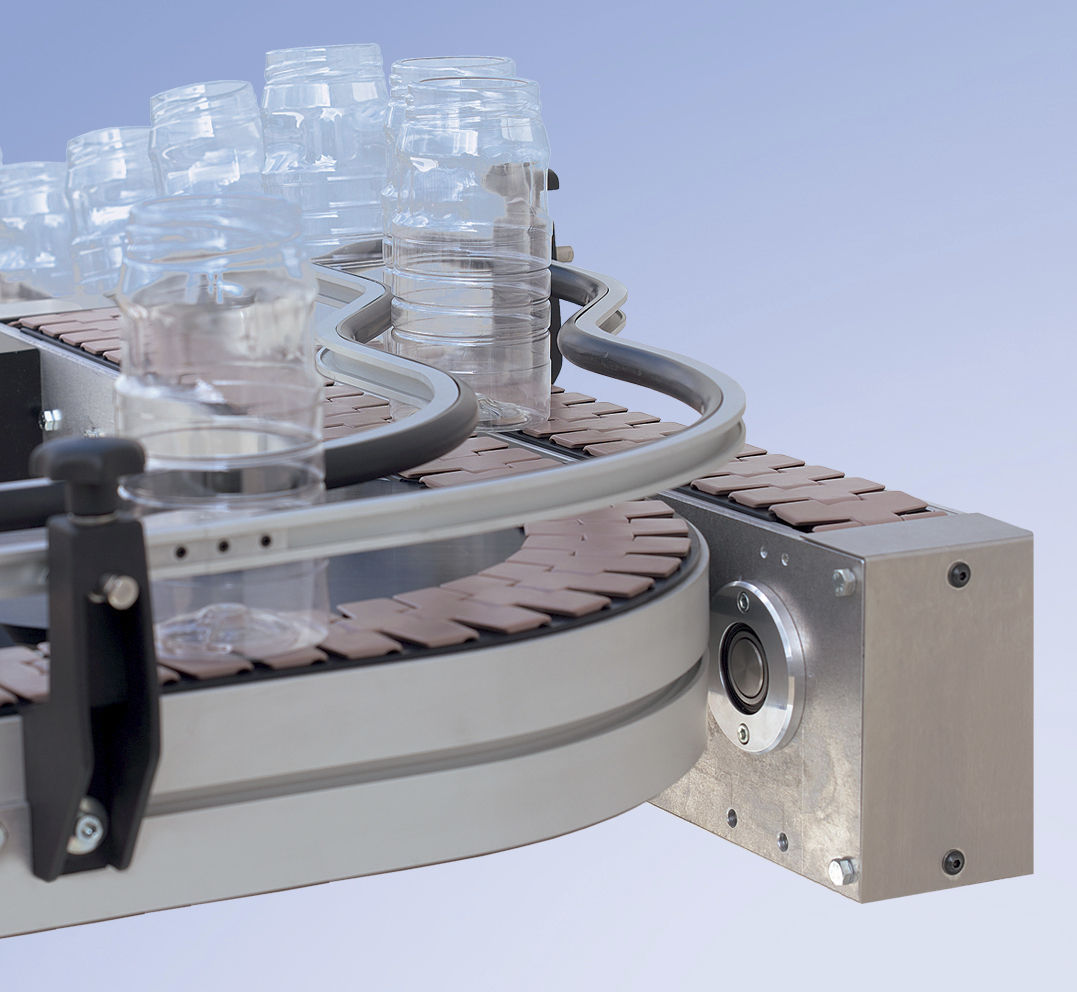

SBF-P 2254 und SBF-I

Article: 00022122

Chain conveyor / horizontal

The SBF-P 2254 is a leveled top chain conveyor system which is ideal for the feed and interlink spaces. It finds its general application in transit of bottles, cans, or cardboard packages which makes it compatible for employment in the food packaging industry. If there is a requirement for stainless steel integration in the applications, our INOX conveyor systems will satisfy your demands. Apart from sections, 90 and 180 degrees inclined and rolling curves, with conveying segments and inclining elements for uniting the height differences are also employed.
It has conveyor thickness of 100 and 130 mm with a custom length. There is a drive and speed of 60 m/min with AC drive version. The flat top chains are available in plastic or steel with an optional cleats and has a diameter of W-15 mm.

Specifications

  • Technology: chain
  • Configuration: horizontal
  • Speed: 60000 mm/min (39.37 in/s)
