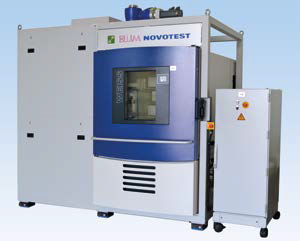

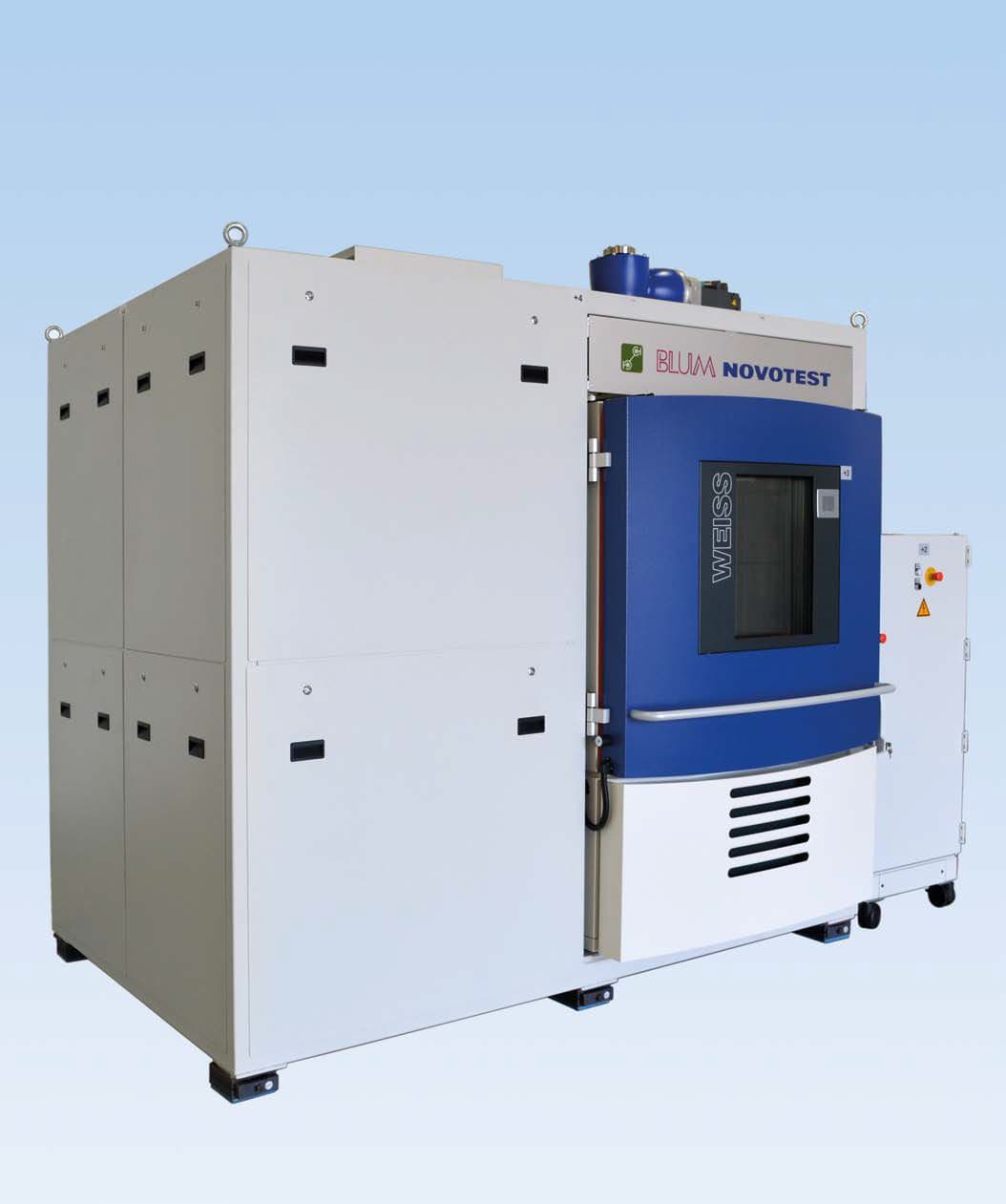

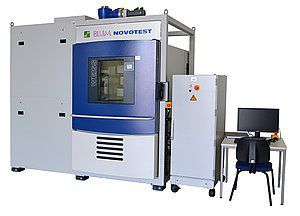

Climatic chamber / for test benches

Hot/Cold Boot Test Rig
This climatic chamber is used to perform endurance tess of boots under the following test conditions:
Cooling ? heating
Rotation
Bendig angle ?1 and ?2
Axial excitation

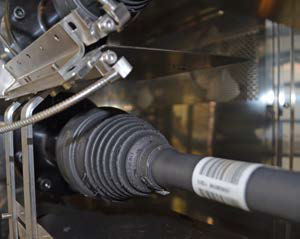

A maximum of four drive shafts can be tested simultaneously. Each boot is monitored for signs of grease leakage. In the event of damage/wear, only the affected line is switched off. All other test procedures remain unaffected.


Technical Data: Test Rig
Dimensions: 2700 x 2000 x 2700 (HxWxD in mm)
Test shaft speed: 0 ? 2500 rpm
Test temperature range: - 40 °C to +150 °C
Number of test shafts: 4
Side shaft length: 250 to 630 mm between joint centre
Pivot point clearance: 40 to 150 mm from flange face
Overall shaft length from flange to flange: max. 800 mm

Specifications

  • Type: climatic
  • Applications: for test benches
  • Temperature: Min.: -40 °C (-40 °F)
