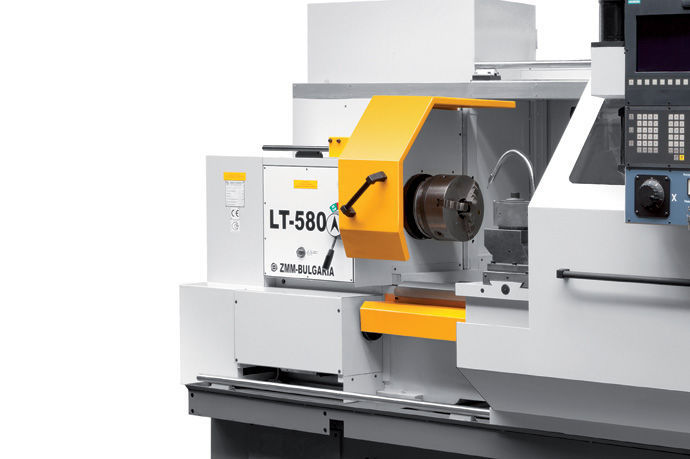

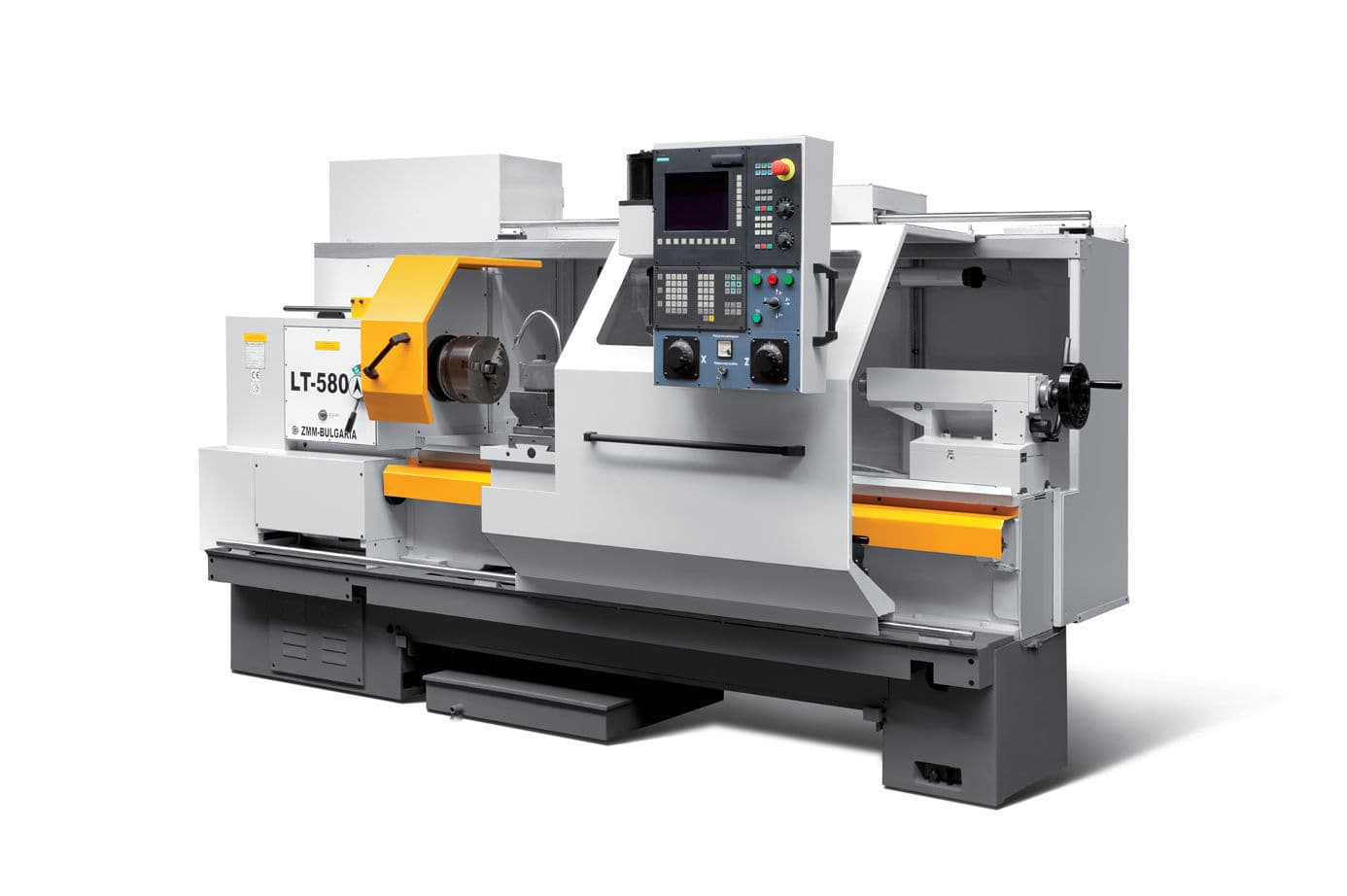

LT580

Article: 00024874

CNC lathe / 2-axis

STANDARD MACHINE SPECIFICATION LT 580
CAPACITY Height of centers mm 290
Swing over bed mm 580
Max. turning diameter over guideways for lathes with turret head mm 580
Swing over cross slide mm 380
Swing in gap mm 780
Distance between centers mm 1000, 1500, 2000, 3000
Max. turning length in chuck and live center for lathes with turret head mm 1000, 1500, 2000, 3000
SPINDLE Spindle nose DIN 55027 mm 8
Spindle bore mm 72
Spindle taper Metric 120 Metric 80
HEAD STOCK Number of spindle speed Infinitely variable in 3 sub-ranges
Spindle range rpm 25-100, 100-400, 500-2000
Main motor power kW 11
FEEDS Z-axis feed m/min 0-10
X axis feed m/min 0-10

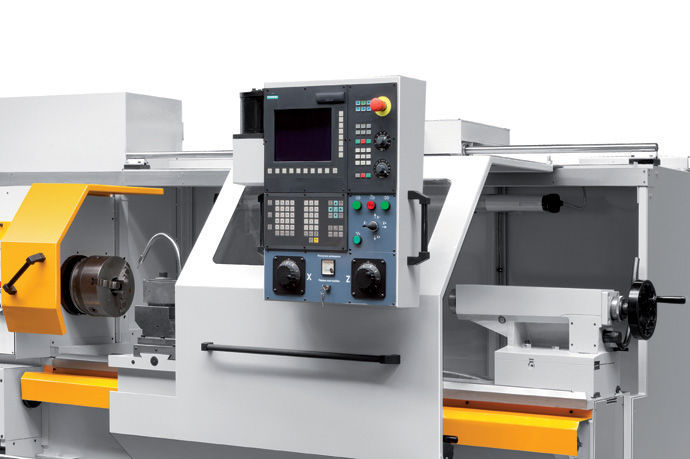

CNC SYSTEM alternatives Fanuc, Siemens, Fagor
TOOL HOLDER/TURRET HEAD Tool section mm 25 x 25
Diameter of boring bar mm 32
Turret head position number mm 4, 8

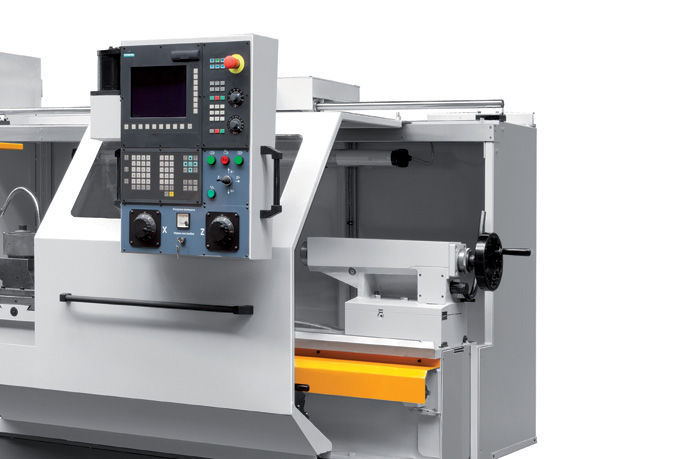

TAIL STOCK Quill diameter mm 72
Quill taper Morse No.5
Quill traverse mm 230
WEIGHT Weight kg 3800

Specifications

  • Control type: CNC
  • Number of axes: 2-axis
  • Diameter: 580 mm
  • Spindle speed: Min.: 25 rpm (157.08 rad.min-1)
