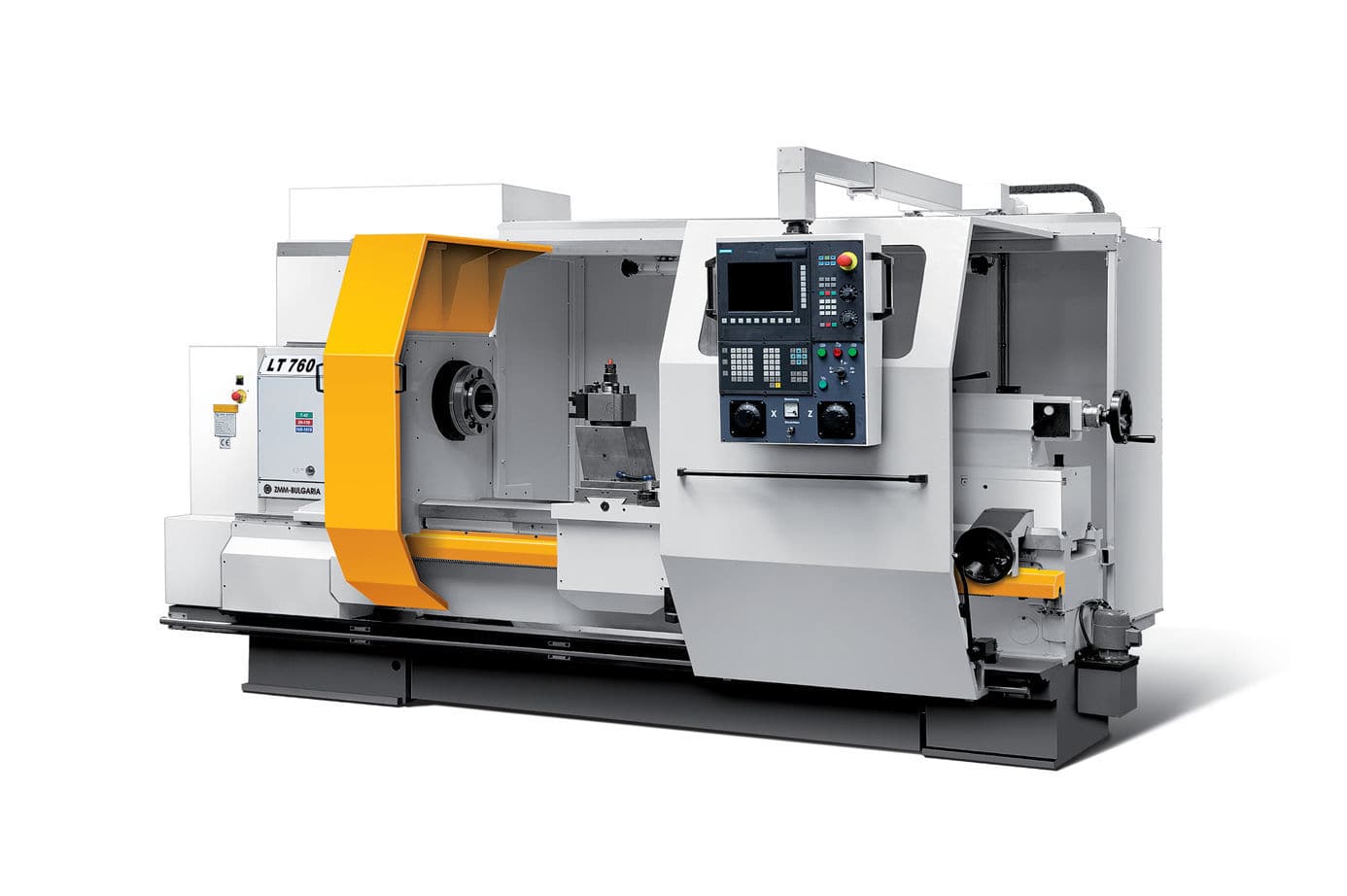

LT760, LT860

Article: 00024876

CNC lathe / 2-axis

STANDARD MACHINE SPECIFICATION LT760 LT860
CAPACITY Height of centers mm 380 430
Swing over bed mm 760 860
Swing over cross slide mm 520 620
Width of bed mm 560
Distance between centers mm 1350; 1850; 2850; 3850; 4850; 5850
SPINDLE Spindle nose DIN 55027 No 11
Front bearing diameter mm 170
Spindle bore mm 132
Spindle taper Metric 140
HEAD STOCK Number of spindle speeds 3
I - Range rpm 7 - 42
II - Range rpm 28 - 170
III - Range 165 - 1015

Specifications

  • Control type: CNC
  • Number of axes: 2-axis
  • Diameter: 760 mm, 860 mm
  • Spindle speed: Min.: 7 rpm (43.98 rad.min-1)
