Combined Clutch And Brake Units

Huco Engineering Industries

  • Electromagnetic particle clutch and brake

Article: 00026446

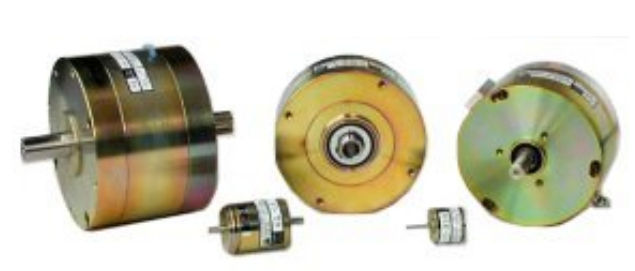

Electromagnetic particle clutch and brake

These magnetic particle clutches and brakes engage with the application of an electric current to stainless steel magnetic particles in the gap between the output disk/ shaft assembly and the housing. The particles are normally free flowing but when current flows through the stationary coil it creates a magnetic field which causes the particles to form long chains along the magnetic field lines. This links the disk to the housing with a torque that is proportional to the applied input current. Response time is very fast and operation is smooth, reliable and backlash free.

Specifications

  • Operation: electromagnetic particle
  • Torque: Min.: 0.04 Nm (0.03 ft.lb)
