Compression Load Cells

Magtrol

  • Compression load cell

300 - 400 kN | SK-01 series

Article: 00027263

Compression load cell

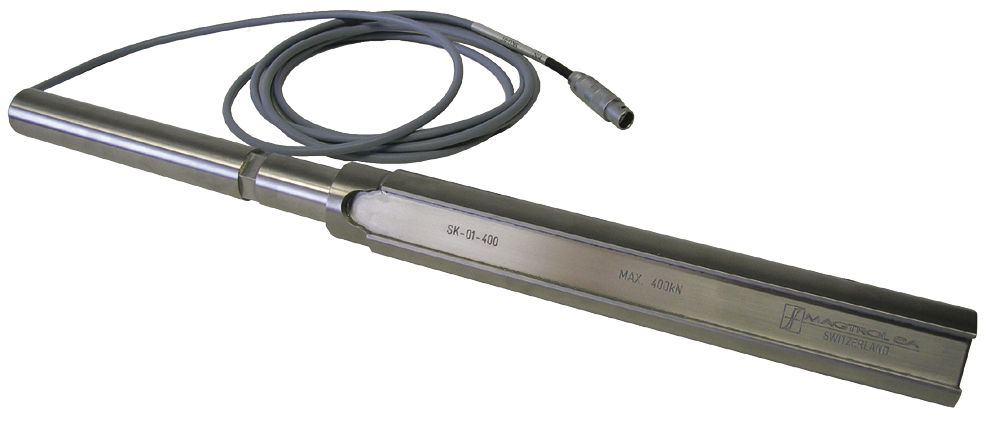

The Magtrol SK-01 Force Transducer is designed to work on strain gauge technology for ideal application in control of ropes, brake clamps and similar devices. The clamping force is measured on the longitudinal axis of the transducer independent of the clamp. SK-01 is available in two different ranges. The first version is for ropes with diameter 20 to 39 mm for forces up to 300 kN and the second for rope of a diameter 40 to 60 mm for forces up to 400 kN. SK-01 can be connected with SKG-01 digital amplifier to ideally measure the clamping force on lifts, ski-lifts and similar applications.

Specifications

  • Type: compression

Other items

In this category | In this category, (Magtrol)
