Compression Load Cells

Hardy Process Solutions

  • Compression load cell

max. 450 lbs | LPB

Article: 00027480

Compression load cell

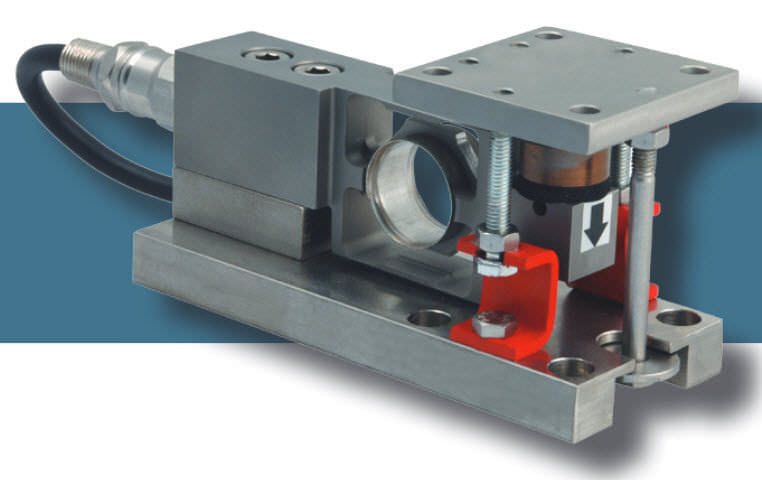

The Hardy HI LPB ADVANTAGE® Series, sliding load point/weigh module system is designed for use on light to medium capacity vessels. Each weigh module consists of mounting hardware and a stainless steel mV/V and mV/V/ohm matched load sensor with true hermetic sealing, C2® Electronic Calibration capabilities, onboard electronic certs, a ¼ NPT conduit adapter and ten feet of cable.


Each pre-assembled,low profile load point system provides lift off protection and consists of three mount types
specifically designed to eliminate the effects of unwanted forces to provide exceptional accuracy. The assembly can be positioned 360 degrees in ninety degree steps. A grounding strap and fixed color code wiring label is provided with each load point. The mounting hardware is available in either stainless or zinc plated steel. The sensors have an IP rating of IP68/IP69K and are NTEP Class III.

The HI LPB is available in the following standard capacities: 44 lbs, 110 lbs, 225 lbs, 450 lbs, and come fully assembled with shipping bracket for protection.

Specifications

  • Type: compression
