Compression Load Cells

Schenck Process

  • Weighing load cell / button type / compact / for hoppers
  • Weighing load cell / button type / compact / for hoppers
  • Weighing load cell / button type / compact / for hoppers
  • Weighing load cell / button type / compact / for hoppers

Article: 00027219

Weighing load cell / button type / compact / for hoppers

For classic and special tasks

From standard through to very special solutions
From classic solutions for regular tasks through to weighing tasks in the most difficult locations ? at Schenck Process you get all you need from a single source. Schenck Process? weighing sensors can turn practically anything into a scale, with a level of accuracy from +/- 0.05% up to the highest precision legal-for-trade C5 and C4 Mi-7.5. We use weighing sensors to weigh light and heavy weights ranging from 5 kg up to 470 t.

Applications:
Internal through to hazardous (potentially explosive) area applications with environmental conditions requiring protection types up to IP 68. Applications up to temperatures of 150°C.

Entrust your weighing tasks to the inventors of load cells.

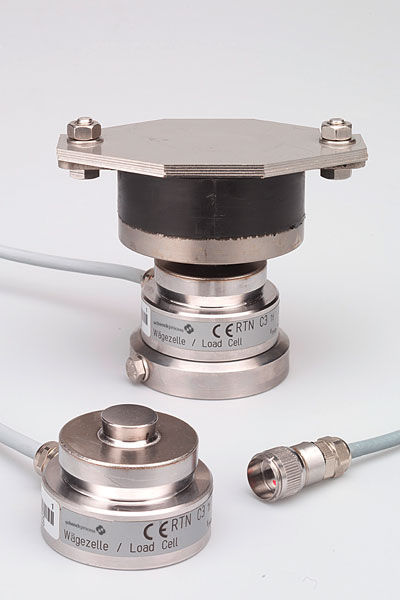

RTN ring torsion load cells:
For reliable, calibrated accuracy filling of valuable bulk materials in case of hopper scales.
Rated load: 1 t ? 470 t. Accuracy classification: +/- 0.05% to C4 Mi-7.5

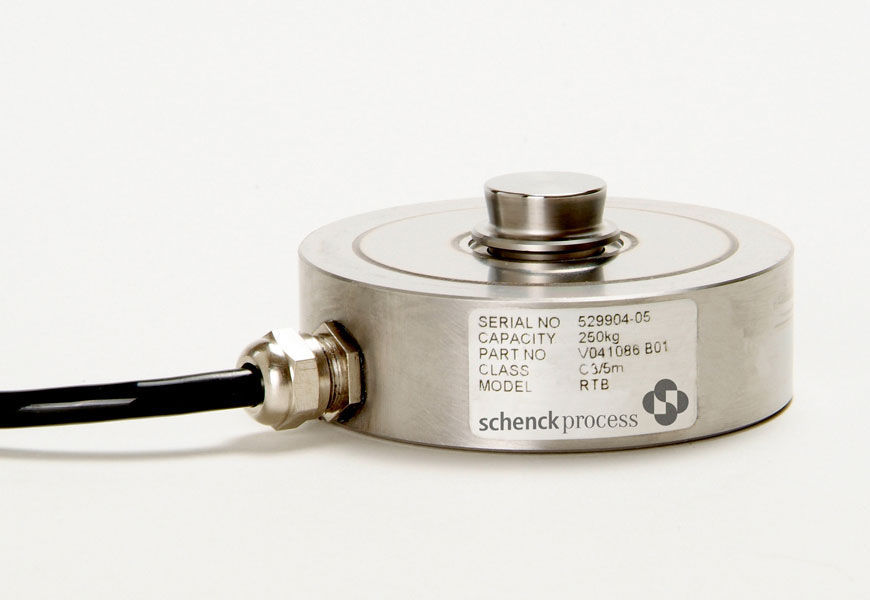

RTB ring torsion load cells:
For reliable, calibrated accuracy filling of valuable bulk materials in case of hopper scales and platform scales.
Rated load 130 ? 500 kg. Accuracy classification: C3/C3 Mi7.5/C6.

VBB load cells:
For rated loads under 1 t. Reliable, calibrated accuracy.
Rated load: 0.1 t ? 0.5 t. Accuracy classification: D1 ? C4

Measuring Eye, DMA Type:
Compact sensor for measuring forces and masses. Can be used in potentially explosive atmospheres, protected to IP 68.

Adequate mounts for each application:

Compact mounts VKN
Elastomer mounts VEN
Pendulum mount VPN

Specifications

  • Type: weighing
  • Form: button type, compact
  • Applications: for hoppers
  • Rated load: Min.: 5 kg (11.02 lb)

Other items

In this category | In this category, (Schenck Process)
