• Electric connector / circular / jack
  • Electric connector / circular / jack

M12, cat. 6A

Article: 00028717

Electric connector / circular / jack

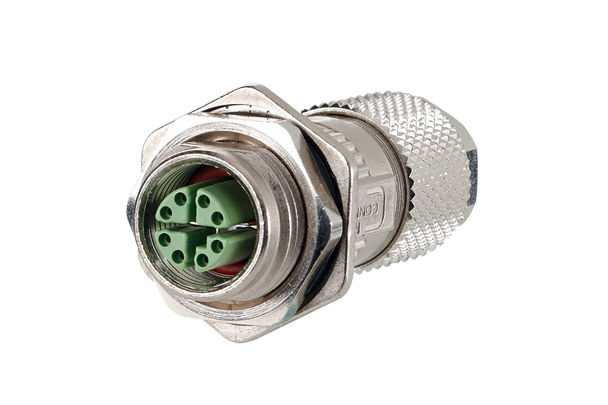

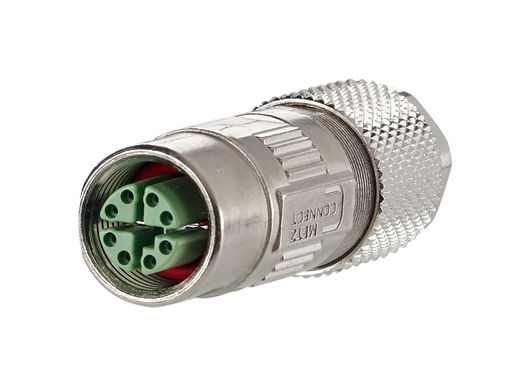

M12 Jack X-Coded is an eight core jack that is best to utilized for 10GBit as per IEEE 802.3an with a 0.48 to 0.76mm stranded copper wire diameter and 0.4 to 0.64mm diameter solid copper wire. It can be connected to AWG 26/7-22/7 and AWG 24/1-22/1. It also has a 1.6mm core diameter and 5.0 - 9.7mm overall cable diameter. M12 casing is made of zinc die-cast and its only have 2 parts that can be easily build and don't need a special tools.

Specifications

  • Type: electric
  • Shape: circular
  • Connection type: jack
