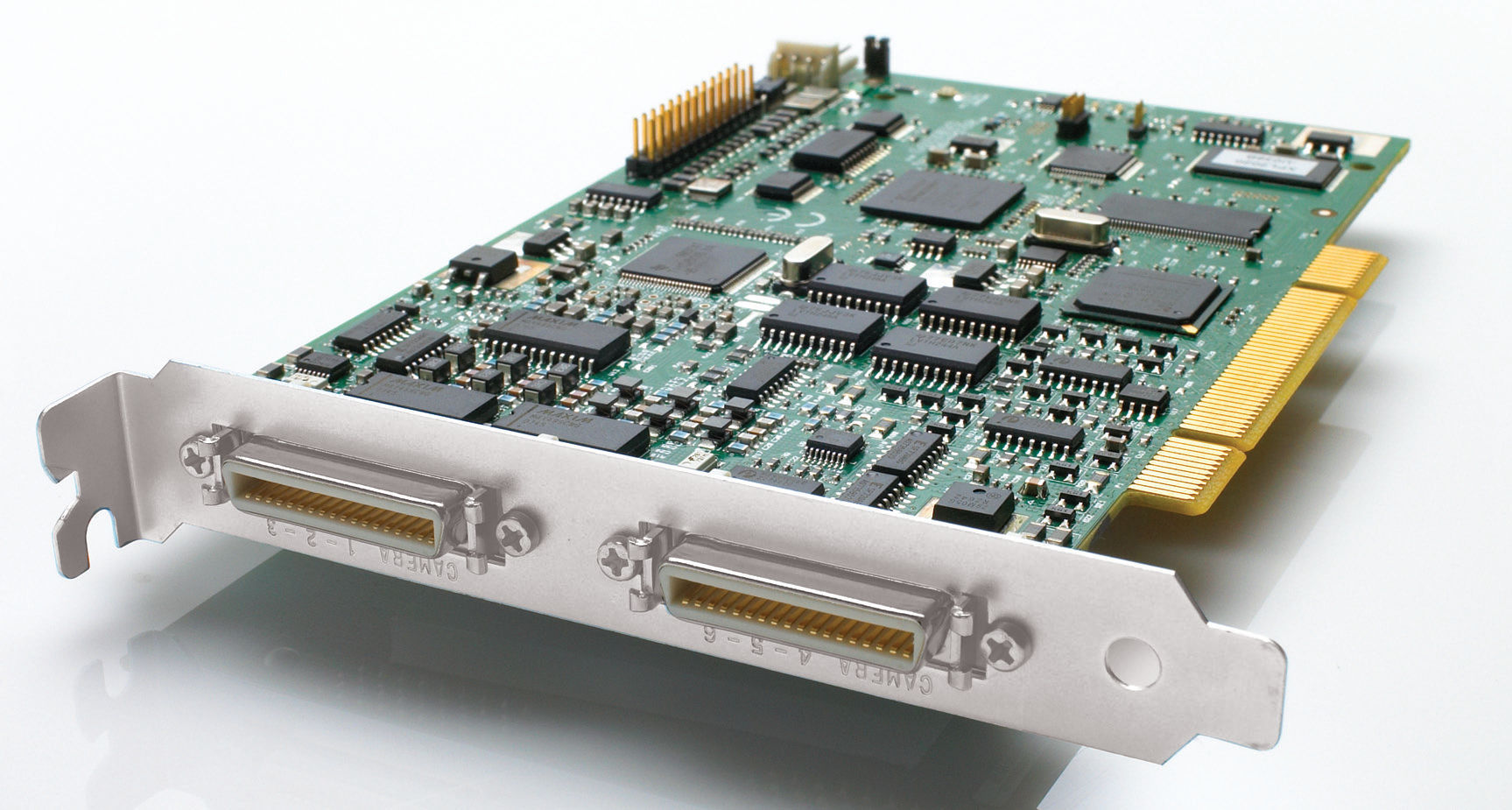

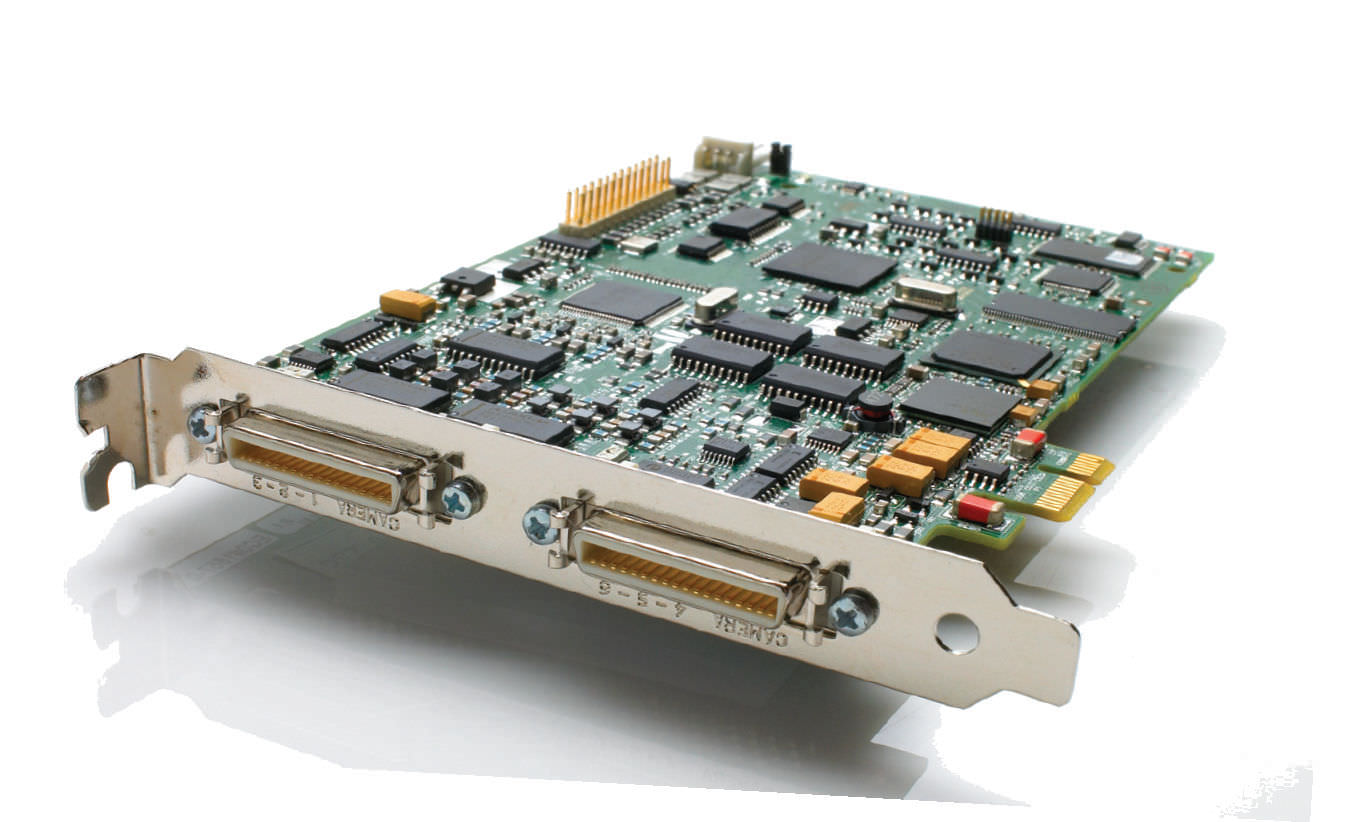

PC2-Vision Express

Article: 00035746

PCIe video capture card / analog

The PC2-Vision Express frame grabber is a high-performance, PCIe image acquisition board developed for cost-sensitive machine vision applications. The board’s acquisition circuitry is exceptionally versatile and designed to interface with standard (RS-170 and CCIR), nonstandard (progressive scan), RGB and dual-channel analog cameras. The PC2-Vision simplifies camera interfacing by offering fully programmable timing coupled with efficient cabling and a variety of trigger, strobe and asynchronous reset options. It features six inputs and high digitization rates, making it an ideal solution for a wide variety of industrial inspection, identification and gauging applications. The PC2-Vision has been engineered within DALSA's Trigger-to-Image Reliability framework to ensure highly reliable and efficient acquisition control throughout the entire image capture sequence.

Feature Highlights
Ability to acquire images from up to 6 monochrome cameras, 2 RGB cameras or 2 dual-channel analog cameras
Supports standard or custom progressive scan asynchronous reset cameras
Each camera has its own vertical synchronization, horizontal synchronization and frame reset input for maximum flexibility
Supports frame delay mode cameras for up to 6 simultaneous inputs
Parallel I/O port enables easy interfacing to other controllers within the machine vision system

Specifications

  • Bus standard: PCIe
  • Input/output signal: analog
