Distribution Transformers Transformer Stations

Ningbo Tianan Group Co

  • Power transformer / regulating / multi-winding / two-winding

SF, SFZ, SFS, SFSZ series

Article: 00038490

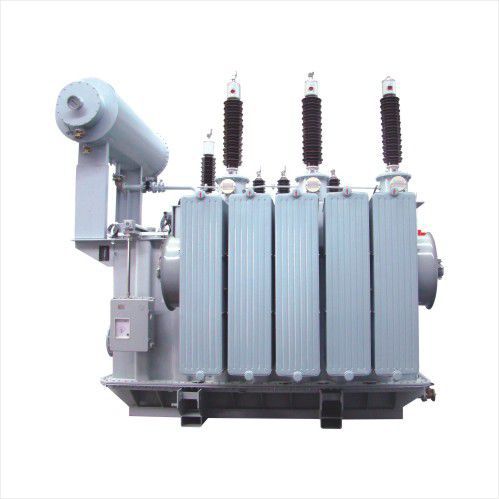

Power transformer / regulating / multi-winding / two-winding

Description
SF, SFZ, SFS, SFSZ series power transformer are produced by our company. The max capacity of single set is 240000 KVA for 110 KV voltage level. The max capacity of single set is 400000 KVA for 220 KV voltage level.

Application
This transformer can realize transmission and distribution by changing the network voltage into the system voltage or load voltage. This series product can be installed and used in outdoor (indoor) and suitable to operate in humidity, so it is the ideal equipment for many power transmission and distribution in factory, village and city.

Features
1. High Short-Circuit Resistant Ability
Adopt advance calculation procedure to calculate the short-circuit status and analyze stress and deformation condition for each sectional of coil under short-circuit status. So it improved short-circuit resistant ability greatly.

2. Low Loss
- Optimize electromagnetic calculation and adopt many shield way to control magnetic flux leakage, so it reduces load loss and avoids partial overheat.
- It uses high quality cold rolling lattice orientation silicon steel sheet, adopts STEP joints, and advanced stacking process, reduces the load loss, load current and electromagnetic noise.

3. High Mechanical Strength
Adoption of six-side positioning method for the body, meets the transportation requirement of, horizontal acceleration not more than 0.3 g, vertical direction not greater than 0.15 g.

Specifications

  • Type: power, regulating
  • Configuration: multi-winding, two-winding
  • Mounting: padmount
  • Electrical characteristics: three-phase, high-voltage, low-voltage
  • Electric power: Min.: 31500 kVA (42242.2 hp)

Other items

In this category | In this category, (Ningbo Tianan Group Co)

Leave request for price calculation right now, we will send you best prices.
