MF1750BB

Article: 00041065

Milling drilling machine / CNC / 8-axis / horizontal

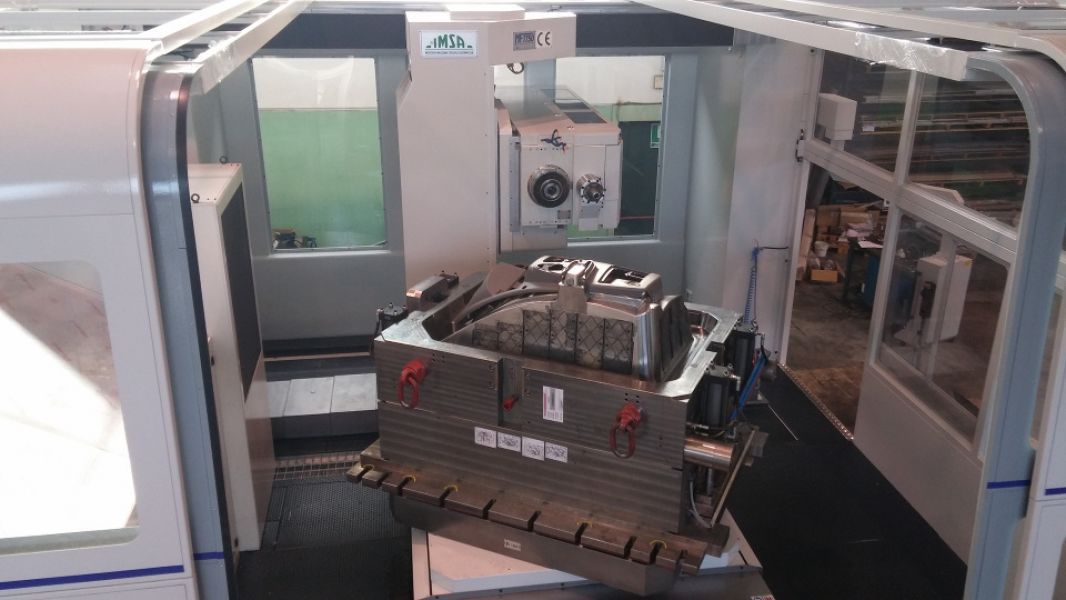

Presented under the headline "GUNDRILLING AND MILLING IN SINERGY" the new MF1750BB Gundrill by IMSA is suitable for molds weighing up to 40.000 kg (different tables available).
The machine structure can accomodate a mold that has a diameter in rotation of max 4.300 mm.
Drilling depth in single operation 1.750 mm. Optimal drilling diameters: 5 - 50 mm solid.
Complex mold waterlines (5-axis drilling) can be executed on MF1750BB thanks to the combination of rotary table and headstock angle.
An ISO50 45kW liquid-cooled electrospindle on separate axis enables all the machining operations that prepare and complete the mold waterlines. Switchover gundrilling/milling and back takes place in automatic mode by an M function.

Specifications

  • Associated function: milling
  • Control type: CNC
  • Number of axes: 8-axis
  • Spindle orientation: horizontal
  • Applications: deep hole, for molds
  • Treated material: for metal
  • Diameter: Min.: 5 mm
  • Drilling depth: Max.: 1750 mm
