• Power quality analyzer / AC energy network / three-phase power / panel-mounted

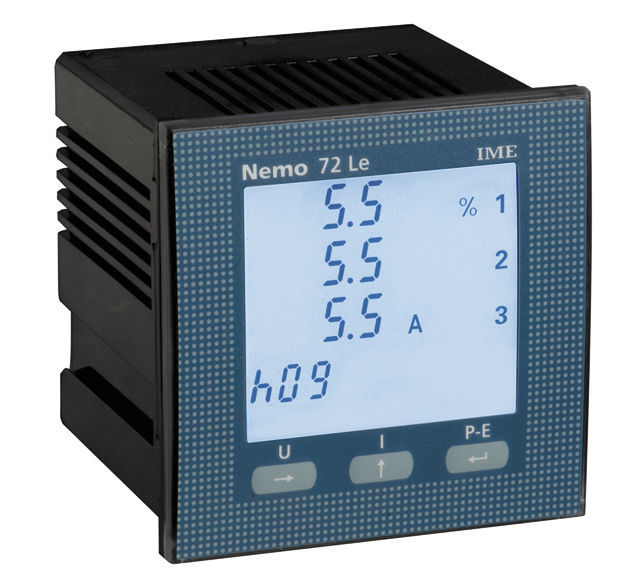

Nemo 72-Le

Article: 00049002

Power quality analyzer / AC energy network / three-phase power / panel-mounted

Three-phase power analyzer for lines 1Ph+N / 3F / 3Ph+N for LV grid via current and voltage (max primary 1kV)

Flush mounting 72x72mm with large backlit LCD display

Bidirectional count of active energy (kWh) in Class 0.5 and reactive energy (kvarh) in class 1 according to EN/IEC 61557-12
Harmonic analysis for current and voltage up to the 50th order + crest factor
Power threshold settable for operating hour counter
True RMS measures (RMS): kWh, kvarh, A, V, kW, kvar, kVA, HZ, power factor, h, average values of A, kW, kvar, kVA

Pulse outputs S0 / alarm + RS485 Modbus RTU / TCP integrated on board, also available with output BACnet

Specifications

  • Measured value: power quality, AC energy network, three-phase power
  • Portability: panel-mount
  • Other characteristics: RS485
