• Magnetic float level switch / for water / threaded / vertical

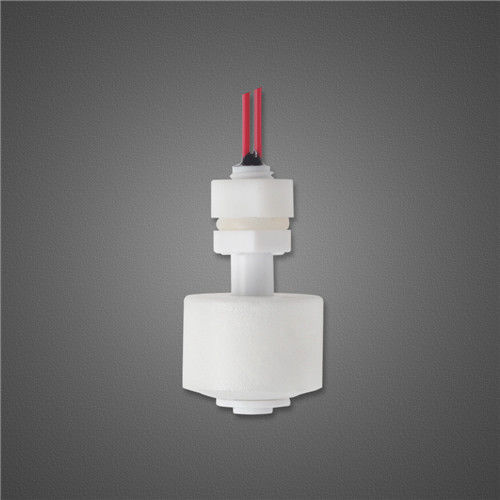

SF112

Article: 00052690

Magnetic float level switch / for water / threaded / vertical

Characteristics:
1.Material: Propene Polymer
2.Tube length: 31mm
3.Float diameter: 24mm
4.Thread: M8 * 1.25
5.Cable length: 350mm( customizable )
6.Installation: vertical

Application:
1.Level control, level measurement
2.Home appliance level control: water heater, coffee machine, water dispenser, humidifier, etc.
3.Container level control

Features:
1.No need power supply
2.Normally open, normally close or SPDT type.
3.ISO 9001-2008

Specifications

  • Technology: magnetic float
  • Measured material: for water
  • Mounting: threaded, vertical
  • Other characteristics: plastic, reed switch
  • Protection level: for harsh environments
  • Applications: for tanks, sanitary, for home appliances
  • Level range: 4.5 mm
  • Process temperature: Min.: -40 °C (-40 °F)
