• TFT control terminal / panel / for robots

CONSOLLE X series

Article: 00060685

TFT control terminal / panel / for robots

The control unit of X SERIES series robots is governed by a CNC installed with a professional operating system that enables applications in real-time and multi-tasking functions to manage operations that run parallel to the movements of the robot. The interface between control and drive is fylly digital and provides excellent azes operationg performance. The position signals (setpoint and feed-back) travel on CANBus allowing the control unit to receive and manage the information concerning the position of each axis in just a fraction of a second.

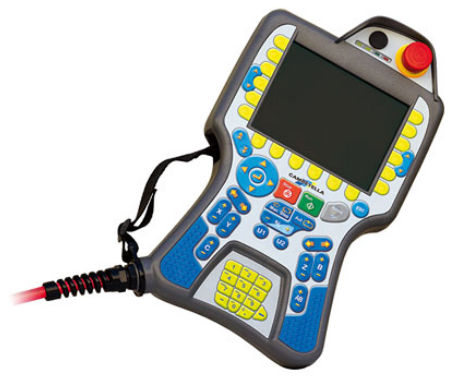

In this series, machine programming is carried out entirely through the hand held display screen. For limited-sized robots up to model MC3, the panel is located on board the machine, without occupying space on the ground. For technical reasons however, the large sized models (MC4-MC5-MC6) and side entry robots (model SM) have their control units on the ground, through they are equipped with a portable consolle with a colour TFT display screen.

Specifications

  • Interface: TFT
  • Mounting: panel
  • Application: for robots
