Hydraulic filters

BELL S.R.L.

  • Absolute filter / for oil / hydraulic / high-pressure
  • Absolute filter / for oil / hydraulic / high-pressure
  • Absolute filter / for oil / hydraulic / high-pressure

Article: 00061921

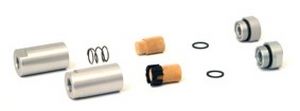

Absolute filter / for oil / hydraulic / high-pressure

A high level of protection is granted by the BELL In-line Filters to the most delicate and frail components of any oleodinamic system. They keep the particles sucked or produced by the pump under the size of 10 micron if placed in the site under pressure (standard size 10-25-40-60micron).

These filters are mostly used along with standard and normal filters in release or suction for being the last barrier of protection before the entrance in directional valves or flow regulating valves. These are also used in all other components in which a high grade of absolute filtering is required. A treated alloy is used to make the body which enables it to have minimum dimension and weight while synthered bronze is used to make the filtering element in a conical shape to resist to high pressure and prevent collapsing.

Specifications

  • Designed for: for oil
  • Type: absolute
  • Applications: hydraulic, high-pressure
  • Other characteristics: in-line
  • Filtration size: Min.: 10 µm
  • Operating pressure: 350 bar (5076.32 psi)
