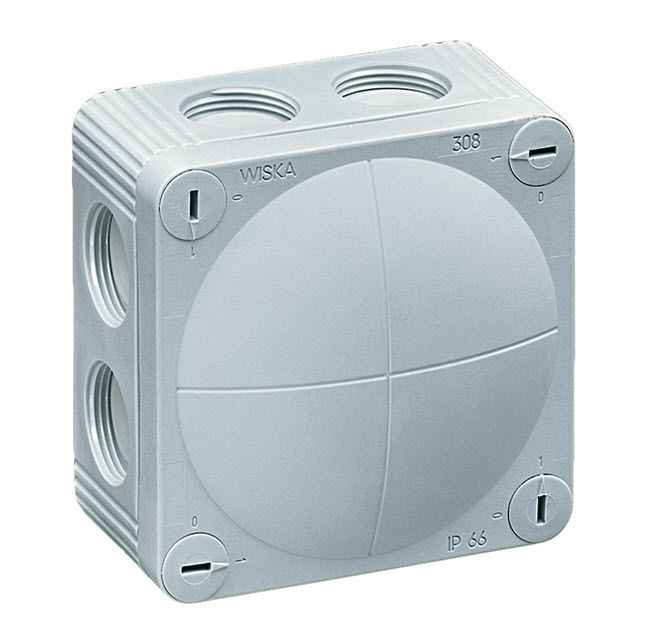

• Plastic junction box / temperature-resistant / wall-mounted / with knockouts

85 x 85 x 51 mm, IP 66 | COMBI 308 series

Article: 00070464

Plastic junction box / temperature-resistant / wall-mounted / with knockouts

The Combi 308 is a series of junction box manufactured by Wiska. The device is constructed from a polyproplene and reinforced glass fibre. It is built with a protection class of IP 66 which can withstand a temperature range of -30C up to +100C, and can reach a maximum heat of +120C. The junction box consist of a mounting clip or internal openings outside of the sealing area for fixing purposes.

It has distinct measurement of 85mm x 85mm x 51mm.

The Combi 308 consist of 8 elastic self-sealing membranes for cable entry without mechanical devices nd 8 integrated M 20 threads without necessary locknuts.

In addition, the device has a screwing sleeve of DN 48 for fixing rails, a EC 308 earthing plate and an adapter 308/1210.

Specifications

  • Material: plastic
  • Protection level: temperature-resistant
  • Mounting: wall-mounted
  • Other characteristics: with knockouts
