  • Pneumatic cylinder / single-acting / steel
  • Pneumatic cylinder / single-acting / steel

102 series

Article: 00101434

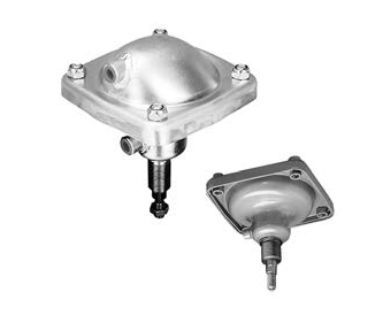

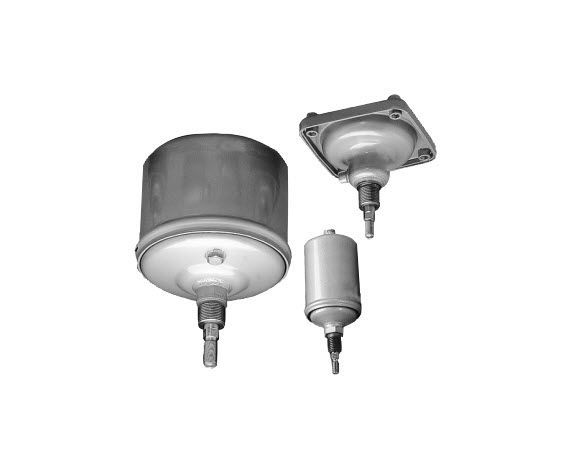

Pneumatic cylinder / single-acting / steel

Compressed air connection Internal thread

Working pressure min./max. 2 bar / 8 bar
Ambient temperature min./max. -20°C / +70°C
Medium temperature min./max. -20°C / +70°C
Medium Compressed air
Max. particle size 50 µm
Oil content of compressed air 0 mg/m³ - 5 mg/m³
Pressure for determining piston forces 6 bar


Materials:
Cylinder tube Steel
Piston rod Steel
Front cover Steel
Seal Acrylonitrile Butadiene Rubber

Specifications

  • Type: pneumatic
  • Configuration: single-acting
  • Material: steel
  • Stroke: Min.: 80 mm
  • Force: Min.: 130 N
