UNIFLUX

Article: 00106019

Blade mixer / batch / high-pressure

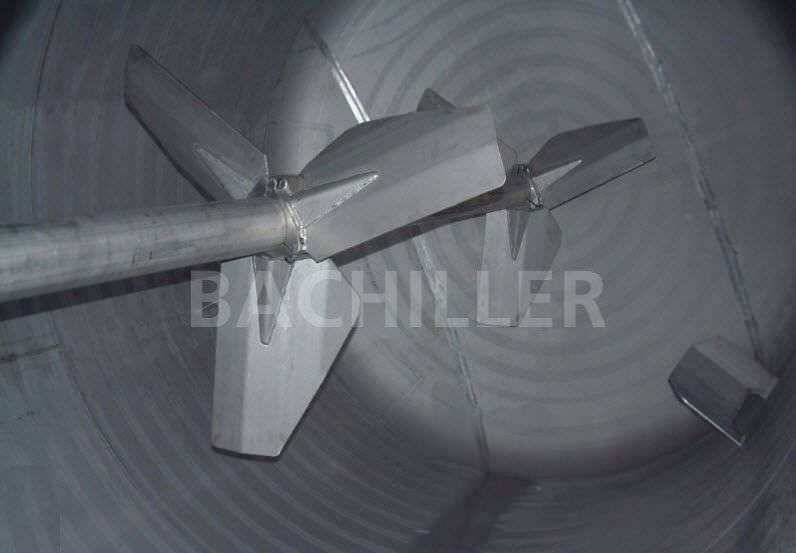

Axial flow turbine
The Uniflux is designed to obtain a high mixing efficiency with moderate power consumption, very suitable for viscosities between 100 and 5.000 cps
Working ranges
Especially indicated for fluids in turbulent flow Optimal efficiency at low viscosities Maximum working viscosity 10.000 cps Drive up to 300 KW Tip speed between 4 and 10 m/s Maximum working pressure 20 bar(g) Maximum working temperature 300ºC
Options and special executions
Executions for ATEX classified areas ATEX execution officially certified for internal zone 0/20 Sanitary design according to cGMP, validatable FDA Triple mechanical seal for high pressure applications Sterile executions with double mechanical seal sterilized from the exterior

Specifications

  • Type: blade
  • Batch/continuous: batch
  • Other characteristics: high-pressure
