Pressure Switches Vacuum Switches

Micro Sensor Co

  • Mechanical pressure switch / for gas / for liquids / IP65

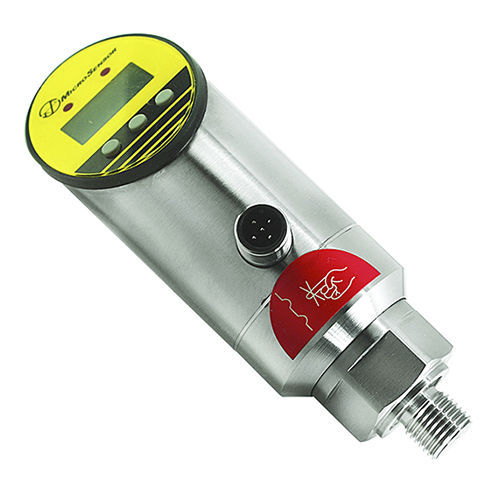

MPM5581

Article: 00114464

Mechanical pressure switch / for gas / for liquids / IP65

MPM5581 is intelligent pressure switch performing pressure measurement, display as well as control. It is specially designed with high quality sensing element and ARM industrial MCU core to achieve quick response and good electromagnetic compatibility with enhanced accuracy guaranteed.

With switch output, analog output and a display, MPM5581 intelligent pressure switch can be used to deal with the process pressure and switch contact condition visually. It is able to install vertically, horizontally, or with rack.

Features:
1. Pressure measurement for gas and liquid
2. Optional for PNP , voltage and current output
3. Peak value display
4. Ranges drift function
5. PNP switch point setting, time delay setting for action
6. Modbus communication
7. OLED display
8. Display rotate 180o
9. Body rotate 330o
10. Change-over of different units

Specification:
1. Range: (MPa) 0.1,0.35,0.7,1.6,3.5,7,10,25,40,60
2. Range drift: 25%FS?100%FS
3. Pressure Type: Gauge, Absolute
4. Overpressure: 2×FS or 100MPa(min. value is valid)
5. Accuracy: ±0.5%FS
6. Hysteresis: ±0.2%FS
7. Thermal error: ±0.02%FS/?(Zero/FS)
8. Power supply: 12V?30VDC
9. Long Time Stability: ±0.3%FS/year

Outputs:
1 switch: 1×PNP
2 switches: 2×PNP
1 switch + voltage output: 1×PNP + 0V~5VDC/10VDC
2 switches + voltage output: 2×PNP + 0V~5VDC/10VDC
1 switch + current output: 1×PNP + 0mA/4mA~20mADC
2 switches + current output: 2×PNP + 0mA/4mA~20mADC
Switch current: 1.2A(Max.)
Switch life time: >100 times
Switch reaction: Switch action pattern: Hys. Mode / Win. Mode

Condition:
1. Working Temperature: -30?~70?
2. Storage Temperature: -40?~80?
3. Protection: IP65

Specifications

  • Technology: mechanical
  • Fluids: for gas, for liquids
  • Protection level: IP65
  • Applications: for air conditioning
  • Options and accessories: with intelligent controller, multifunctional, digital
  • Process temperature: Min.: -30 °C (-22 °F)
  • Pressure range: Min.: 100000 Pa (14.5 psi)
