• DIN rail programmable logic controller / security

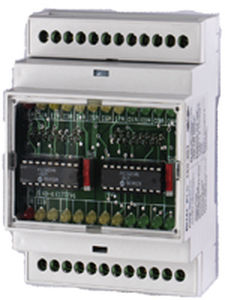

Integron 150-201

Article: 00115583

DIN rail programmable logic controller / security

The Integron 150-201 is intended for low, medium and high hazard provisions, BS EN 954-1, Category 4 control supplies. Regular provisions may incorporate, controlling a few well-being gadgets on a solitary machine through to various security gadgets over a few security zones. The programmable security controller might be bought prearranged or could be modified by the client.

It has a response time of 5ms and the operating pressure is 0 °C to +50 °C. The enclosure rating is IP40 and the enclosure mounting is 70 mm DIn rail mounting and measures 90x70x58mm. The LED status indicators are Power Red LED on for Power on, Inputs Yellow LED on for Input on and Outputs Green LED on for Output on. The power supply requirement is 22-28 V DC Ripple <10% and it is diode protected and the current consumption is 150mA. The classification is BS EN954-1 Category 4 and it has 7 x dual safety inputs and it has 3x dual safety high current outputs 0.5A 1 x Dual safety low current output 60mA. Lastly, it has 1 year warranty.

Specifications

  • Type: DIN rail
  • Applications: security
