IPC-FlexControl

Article: 00115627

On-board programmable controller

The IPC FlexControl is a powerful controller, the CPU, memory and interfaces can be set individually. Based on the IPC-4, it provides you with all key data in combination with CODESYS V3 as the control software.

CODESYS V.3
Control and visualization is realized in this IPC variation with the runtime system CODESYS according to IEC 61131-3. It is a soft PLC for X86 and 32 bit-based embedded systems and includes visualization for X86 systems, as well as a real time core.

QNX
QNX is used as the operating system, which is used for time-critical applications already cross-industry. Drivers, protocols and programs expire outside the kernel in memory secure areas. In a crash of a component, so the core is not affected.

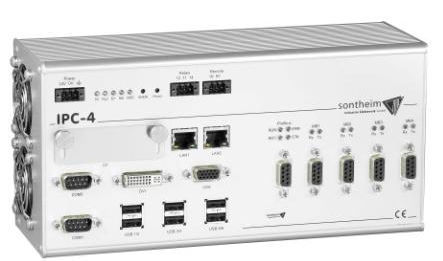

IPC-4 as a high-performance platform
The frequencies range currently from Intel Celeron M 600 MHz to 2 × 2.16 GHz with an Intel Core 2 Duo. According to the Board up to 4 GB DDR RAM can be used, thus complex tasks are easily possible. The inserted SATA disks are released for continuous 24/7 operation and optionally availible with an extended temperature range. Also solid state disks without rotating parts can be used. Together with the QNX operating system, the IPC FlexControl includes therefore an extremely high level of security.

Specifications

  • Type: on-board
