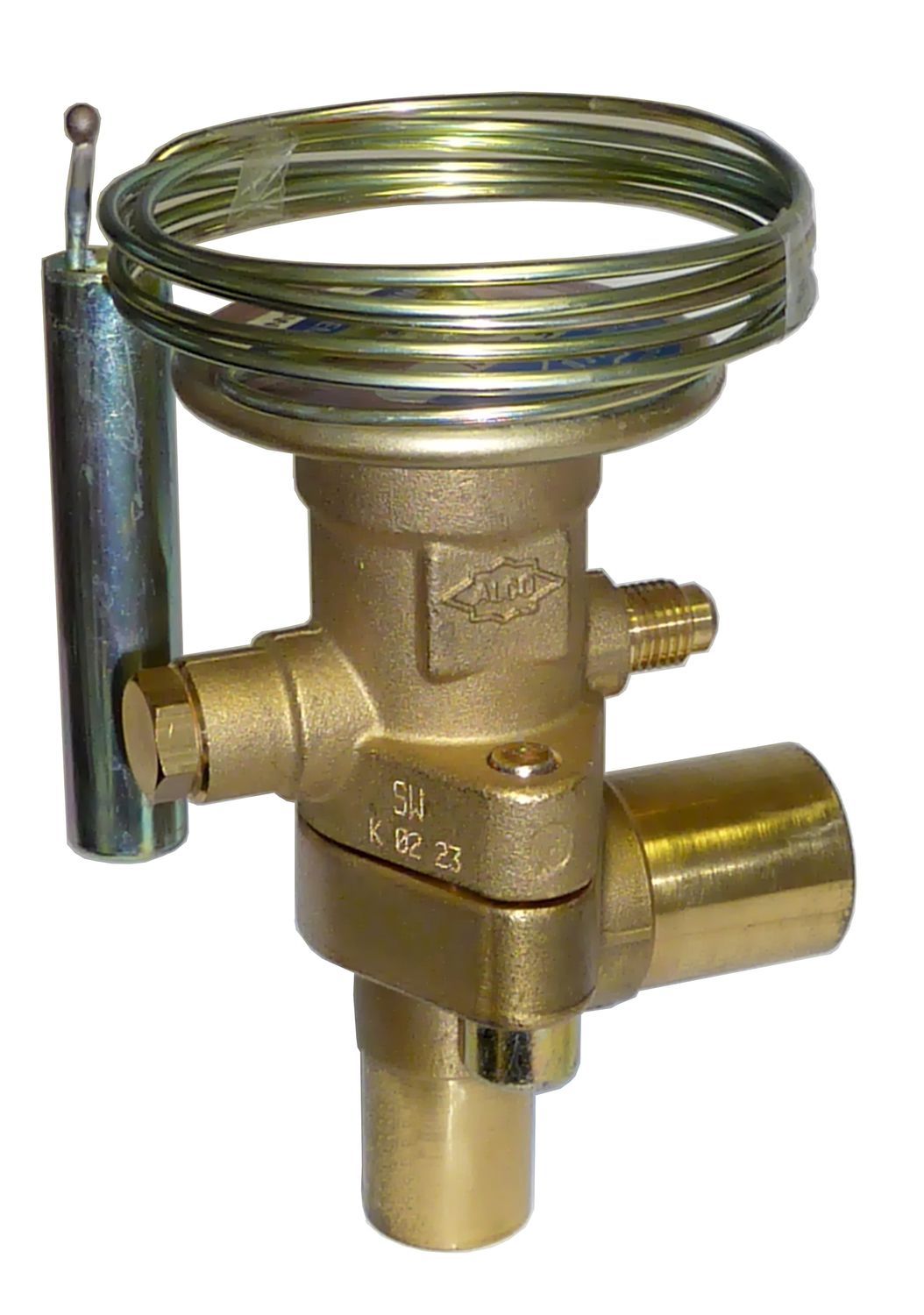

• Diaphragm valve / expansion / desuperheating / for liquids

L series

Article: 00118120

Diaphragm valve / expansion / desuperheating / for liquids

Applications for Series L valves include superheat control
(desuperheating of suction gas i.e., in hotgas bypass
systems and interstage cooling in multiple stage
compressors)
? Modular design for economical logistics and easy assembly
and servicing
? Very good stability is attained because of the large forces
generated by the large diaphragm diameter
? High-quality materials and processes for high reliability and
long lifetime
? Superior partial load performance due to seat orifice design
(LJRE, LERE & LIRE)
? Capillary tube length 3 m
? PS: 46 / 31 bar with XB / XC power assembly
? TS: -45 ... +65°C
? No CE marking according art. 3.3 PED 97/23 EC

Specifications

  • Media: for liquids
  • Type: diaphragm
  • Function: expansion, desuperheating
  • Temperature: Min.: -45 °C (-49 °F)
  • Operating pressure: 31 bar (449.62 psi)
