Tension Compression Load Cells

Xiamen Loadcell Technology Co

  • Off-center load cell / single-point / tension/compression / IP65

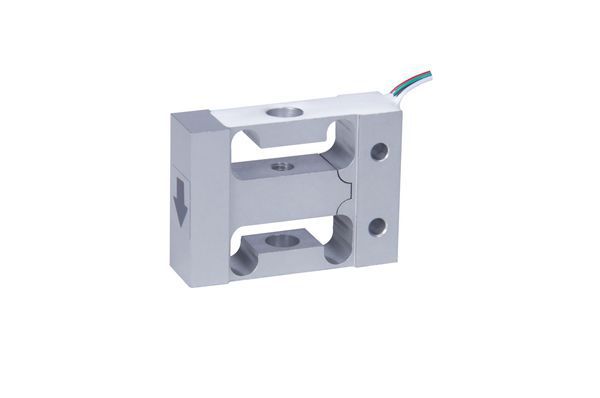

LAF-D

Article: 00132366

Off-center load cell / single-point / tension/compression / IP65

Description
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications.
Advantages of LCT Single Point Load Cells/Miniature Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.These load cells are moment insensitive.
Model LAA-B load cells are designed to this ?single point/miniature/compression&tension?type and manufactured from high quality aluminum alloy of aviation standard. LAF-D oad cells can be used to measure loads range from 1kg to 50kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output) and 2.0mV/V output signal.
LAF-D load cells are mainly used for crane scales,hopper scales,hanging scales and tensile testing.

Specifications

  • Type: off-center, single-point, tension/compression
  • Protection level: IP65
  • Other characteristics: aluminum, miniature
  • Rated load: Min.: 1 kg (2.2 lb)
