Tension / compression load cells

Honeywell Sensing And Productivity Solutions

  • Tension load cell / tension/compression / compression / compact
  • Tension load cell / tension/compression / compression / compact
  • Tension load cell / tension/compression / compression / compact
  • Tension load cell / tension/compression / compression / compact

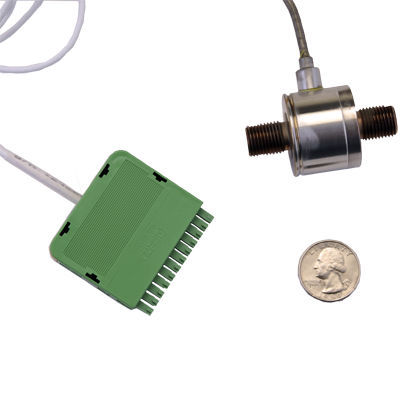

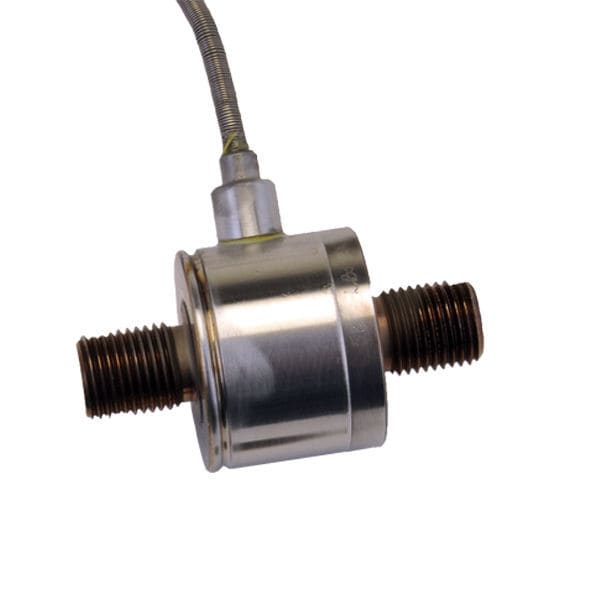

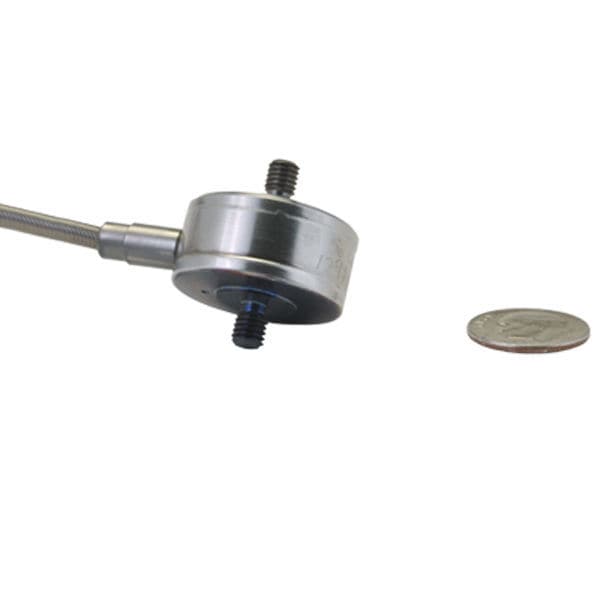

Model 31

Article: 00132306

Tension load cell / tension/compression / compression / compact

Honeywell's Model 31 precision miniature load cells measure both tension and compression load forces of 50 grams to 10,000 lb. and are our highest accuracy, rugged miniature load cells.

The welded, stainless steel construction of welded 174-4 PH stainless steel with double diaphragm is designed to eliminate or reduce to a minimum, the effects of off-axis loads and rugged to stand up to challenging applications and environments. mV/V output

POTENTIAL APPLICATIONS:
- Cable tension
- Electromechanical parts testing
- Medical control systems
- Medical equipment testing
- Pharmaceutical process or product control
- Semiconductor/electronics testing
- Aerospace test applications

Specifications

  • Type: tension, tension/compression, compression
  • Form: compact, low-profile
  • Protection level: submersible, rugged, ultra heavy-duty
  • Applications: for tension control, for medical equipment, for medical applications, for hydraulic applications, for press-fit applications, for wire rope tension, for packaging applications, industrial
  • Other characteristics: high-accuracy, stainless steel, precision, miniature
  • Rated load: Min.: 50 g (1.76 oz)
