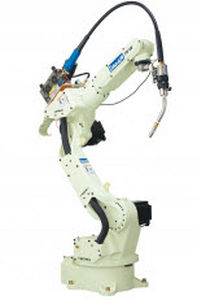

Articulated robot / 6-axis / arc welding / high-speed

Significant increase of the new welding robot series AII performance: the maximum speeds of the individual axes of the manipulator allow higher productivity. Reliable arc start performance for absolute welding quality and less welding spatter.

Reduced rear interference radius: increased space in the area of the hinge

Avoiding collisions: interference detection sensitivity improved by 40% (compared to previous model)

Built-in cable storage: optimally protected, neat cable layout preventing cable from getting caught during robot operation

New shock sensor torch: no deviation of wire position caused by changes in the posture of robot

Large payload capacity: Up to 6 kg payload for all welding applications

Specifications

  • Type: articulated
  • Number of axes: 6-axis
  • Function: arc welding
  • Other characteristics: high-speed, for heavy loads
  • Domain: industrial
  • Payload: 6 kg (13.23 lb)
  • Reach: 1402 mm
  • Repeatability: 0.08 mm
