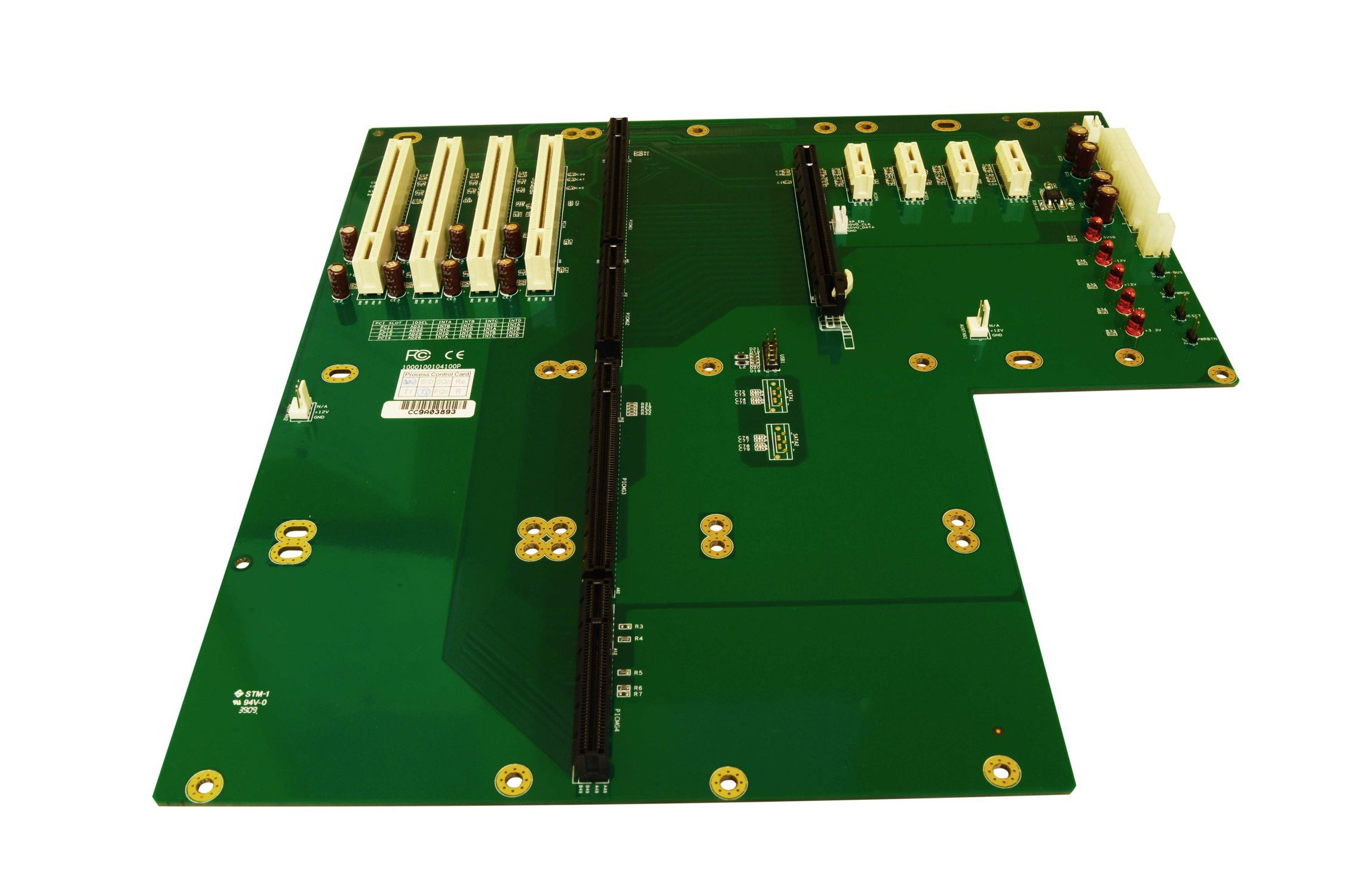

PICMG 1.3 backplane / 6-10 slots

Product Highlights

Dimensions: 12.45? x 12.87? (314.28 mm x 327 mm)
1 x PCle x16
4 x PCle x1
1 x M/B
4 x PCI
2 x USB 2.0 ports
2 x SATAII
Supported Motherboard: Q67SBC

Product Description

The PICMG 1.3 SBC is a 10-Slot Backplane for Single Board Computers. The PICMG 1.3 SBC Backplane was specially designed for the Q67SBC motherboard. This single system PICMG 1.3 form factor is 12.45" x 12.87" and comes with:

(2) USB 2.0 ports
(2) SATAII ports
(4) PCI 32-bit Master slots
(4) PCIe x1 slots
(1) PCIe x16 slot

Specifications

  • Bus standard: PICMG 1.3
  • Number of slots: 6-10 slots
