Batch Furnaces

Nabertherm

  • Car bottom furnace / tempering / electric / air circulating
  • Car bottom furnace / tempering / electric / air circulating
  • Car bottom furnace / tempering / electric / air circulating

W-A series

Article: 00010719

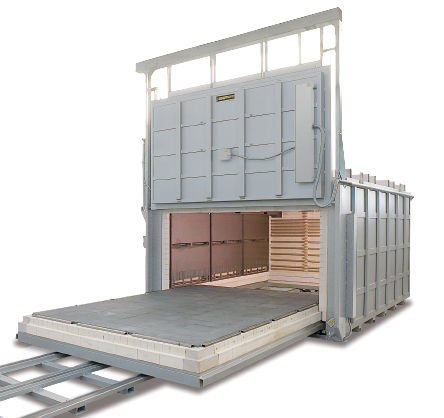

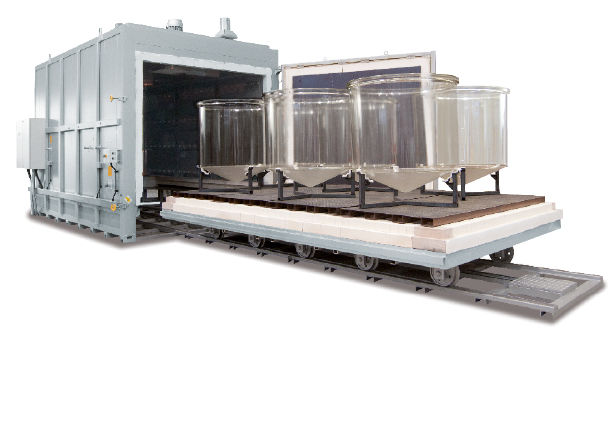

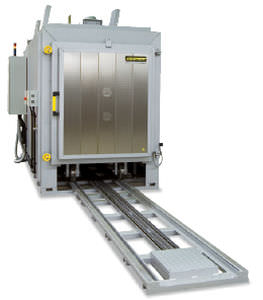

Car bottom furnace / tempering / electric / air circulating

Bogie hearth furnaces with powerful air circulation are used when an optimal temperature uniformity in the low temperature range is required. They are particularly useful for processes like glass tempering or cooling. With the wide range of additional equipment the furnaces can be individually adapted to the individual process.

Tmax 600 °C or 850 °C
Dual shell housing with rear ventilation provides for low shell temperatures for the 850 °C models
Swing door hinged on the right side
Heating from chrome steel heating elements in the intake area of the air circulation system for the 600 °C models
Heating from three sides (both side walls and the trolley) for the 850 °C models
High-performance air circulation fan with vertical circulation
Temperature uniformity up to ?T 10 K according to DIN 17052-1
Bottom heating protected by SiC tiles on the bogie providing level stacking surface for the 850 °C models
Furnace chamber fitted with inner sheets made of stainless steel 1.4301 for 600 °C models and of 1.4828 for 850 °C models
Insulation structured with high-quality mineral wool for 600 °C models
Insulation made of high-quality, non-classified fiber material for 850 °C models
Bogies with flanged wheels running on rails for easy and precise movement of heavy loads
Electric chain-driven bogie in combination with rail operation for smooth movement of heavy loads from model W 4800
Over-temperature limiter with manual reset for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load

Specifications

  • Type: car bottom
  • Function: tempering
  • Heat source: electric
  • Atmosphere: air circulating
  • Maximum temperature: Min.: 0 °C (32 °F)
