8cuft Heat Treat Furnace

Article: 00010600

High-vacuum furnace / chamber / carbonitriding / nitriding

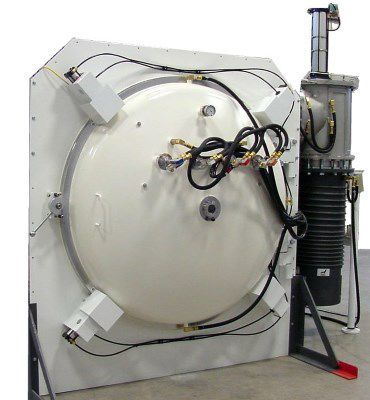

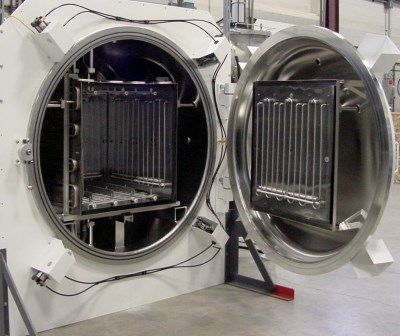

Our large heat treating furnace contains a usable zone of 8 cubic feet and is capable of temperatures up to 1650C and can be equipped with many options. With an 350lbs load limit, it features a high load capacity. The unit shown here features a 16" diffusion pumping system, and gas heat exchanger. The hot zone features tungsten, molybdenum or tantalum wafer-rod heating elements, insuring excellent longevity, rigidity, uniformity and product compatibility. The furnace chamber features a front and rear access door to facilitate loading and maintenance.
General specifications:

- Up to 1650C (3000F) maximum temperature
- 24" x 24 " x24" usable hot zone (610mmx610mmx610mm)
- 20" High vacuum system
- Heat Exchanger for faster cool down
- Excellent temperature uniformity
- Front and rear access
- Large load capacity

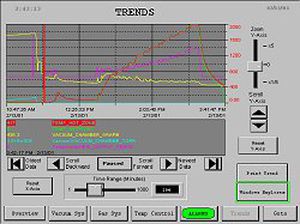

- User friendly HMI Computer Interface
- Load cart and other options available

Specifications

  • Type: high-vacuum, chamber
  • Function: carbonitriding, nitriding, brazing, sintering, annealing, heat treatment
  • Heat source: electric
  • Atmosphere: hydrogen, nitrogen, inert gas, high-vacuum, controlled atmosphere
  • Other characteristics: extra-large size
  • Product applications: for precious metals, metal, for ceramics
  • Domain: industrial, for medical applications, for heavy-duty applications, for the electronics industry, for the aeronautical industry
  • Maximum temperature: Min.: 0 °C (32 °F)
