TFC series

Article: 00011718

Chain conveyor / horizontal / transfer / pallet

3-Chains transfer with standard rollers

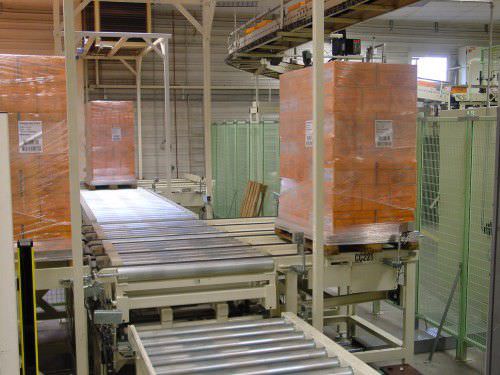

The transfer system allows a change of direction (90°) of palletised loads.
Composed of 2 to 8 chains according to the pallet.
Thanks to its design, the load is always guided during rise and fall.

General features :
* Mechanical welded frame steel (painted), stainless or galvanized
* Conveying height : from 450 mm to 800 mm ± 60 mm
* Load by pallet : 2000 kg (MARCEAU standard)
* System of "Up and down" by motorized cam or pneumatic jack according to the cadence

Specifications

  • Technology: chain
  • Configuration: horizontal
  • Function: transfer
  • Applications: pallet
  • Maximum load: 2000 kg (4409.25 lb)
