Brake Units

Stromag

  • Multiple-disc brake / spring / hydraulic release

KMB-ZM/KLB-ZM series

Article: 00014118

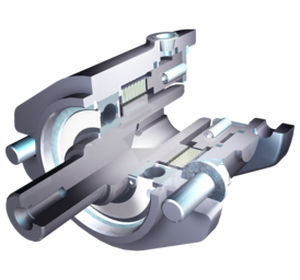

Multiple-disc brake / spring / hydraulic release

Features
Braking torque range 100-3000 Nm (higher braking torques on request)
Release excess pressure 320 bar
Compact design for mounting between components (e.g. between hydraulic motor and gears)
Standard dimensions for mounting on the most diverse hydraulic motors
Minimum dimensions with high braking torques
Variable braking torque graduations per model size
Robust, insensitive, and low maintenance braking unit
Application based design for high operating reliability
Available for dry and wet running
Function and application
Hydraulically released spring-applied multi-disc brakes can be used in a diverse range of stationary and mobile applications, also in conjunction with hydraulic motors.
The main application fields for the KMB/KMB-ZM are in all types of hydraulic drives; hydraulic motors; gears (traversing/winching); construction machinery; winches, hoisting, turning, and swivelling drives; deck and mobile cranes; and traversing and conveyor drives.

Specifications

  • Type: multiple-disc
  • Operation: spring, hydraulic release
  • Torque: Min.: 100 Nm (73.76 ft.lb)
