Brushless Ac Servo Motors

Hdt Srl

  • AC electric servo-motor / brushless

B07

Article: 00014387

AC electric servo-motor / brushless

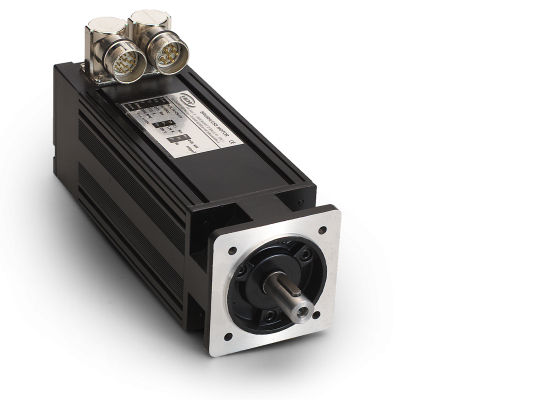

B07 is an effective combination of dimension / torque and dimension / power ratios. It has an attractive design and is extremely compact. The square frame size is 75mm. The model provides torque between 1.1Nm and 3.2Nm based on the stator pack length.
It is a sinusoidal current brush-less six pole motor, which is an apt solution for the automation industrial applications, that require best axial performance.

The resolver provides feedback for windings at 400V & 230V. The Hall probes & encoder provide feedback for low voltage control versions. When, it is collaborated with HDT brush-less drivers, it facilitates best performance level. It is available in a version which consists of a permanent emergency brake of magnet without the backlash.

The various accessories, which are included are varying length initially assembled cables and the complete reduction gears range.

Specifications

  • Type: AC, brushless
  • Power: Min.: 351 W (0.47 hp)
