Brushless Ac Servo Motors

Fr Sauter Ag

  • Brushless electric servo-motor / AC / 24 V / high-speed

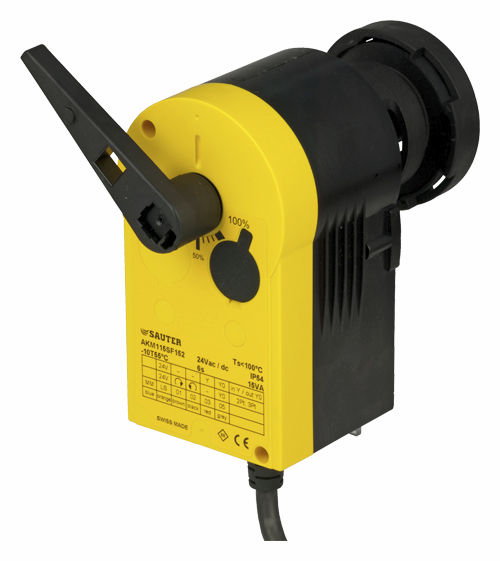

AKM 1.5S F152

Article: 00014303

Brushless electric servo-motor / AC / 24 V / high-speed

How energy efficiency is improved
Automatic adaptation to ball valve, electronic cut-off, precise activation and high energy efficiency with minimal operating noise

Features
For actuating 2- and 3-way regulating ball valves (VKR and BKR series)
For controllers with constant output (0...10 V/4...20 mA) or switching output (2-/3-point control)
For ball valves up to DN 50
Fitted to ball valve without the use of tools
Brushless motor with electronic activation and cut-out
Intelligent adaptation of angle of rotation, incl. feedback adjustment
Electronic force-dependent cut-off
Direction of rotation selected with DIP switch
Pulse length correction in 3-point operation, i.e. internal adjustment of start-up time
Gear unit can be disengaged to position the ball valve manually (using a lever)
Maintenance-free
Free configuration using the CASE Drive PC tool
Bracket and bayonet ring made of glass-fibre-reinforced plastic for fitting onto ball valve

Specifications

  • Type: brushless, AC
  • Voltage: 24 V
  • Other characteristics: high-speed
  • Torque: 8 Nm (5.9 ft.lb)
  • Power: 6.5 W (0.01 hp)
