Brushless Ac Servo Motors

Minimotor

  • Brushless electric servo-motor / permanent magnet / worm gear / integrated-drive

MCDBS

Article: 00014198

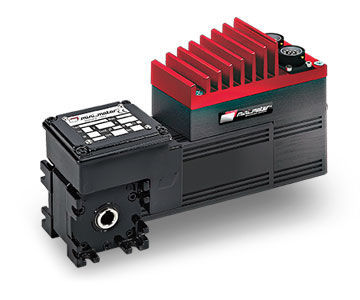

Brushless electric servo-motor / permanent magnet / worm gear / integrated-drive

BRUSHLESS SERVOMOTORS WITH INTEGRATED DRIVE AND WORM GEAR MOTOR.

WORM GEAR UNIT: with die-cast aluminium casing. Centre distance 26 mm. CARO bronze ring, 120÷160 HB hardness. Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures. Gear ratios (i) available, 5 / 7,5 / 10 / 15 / 20 / 30 / 40. Rated torque 9 Nm. Version B3 or B5. B5/S left version - B5/D right version.

OPTIONAL: ? Profibus ? Modbus ? Available in future: Canopen DSP402, Ethercat, EtherNet/IP ? Keyboard with 7 segment display for settings & monitor ? Permanent magnets brake. see specifications.

N.B. For information relating to single motor with integrated drive refer to the DBS Series

Specifications

  • Type: brushless
  • Technology: permanent magnet
  • Other characteristics: worm gear, integrated-drive
  • Torque: Min.: 1.5 Nm (1.11 ft.lb)
  • Rotational speed: Min.: 37.5 rpm (235.62 rad.min-1)
