Article: 00014987

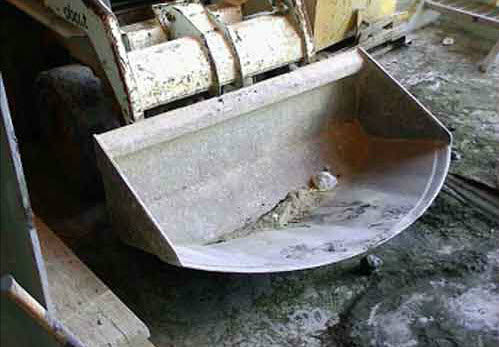

Standard bucket / for excavators

When Bricking Solutions began the distribution of the Brokk tear-out machine it became obvious that we needed to find a faster way to remove the debris from the kiln. The Brokk was so fast at tearing out the brick the problem then shifted to the removal of debris. Removing debris became the number one reason for slowing down the production of the tear-out process. We looked into the many means of removing debris and found the best method was the use of a skid steer loader with bucket. Our next idea was to design a bucket that could take the punishment and be productive.

Our first goal was to determine the proper lower radius of the bucket. The bucket radius needed to work for all the different kiln diameters in the marketplace. After settling that issue we concentrated of the lead edge radius, which we found to be as important as the lower radius. A flat leading edge required the loader operator to accelerate into the pile of debris. This resulted in a problem for the operator because the impact created fatigue, along with shoulder and hand injuries. The other drawback was that it was hard on the machine. Consequently we determined the leading edge must be radiused and made of T-1 steel. We also included the option of installing bucket teeth on the leading edge. The final phase was to come up with a standard mounting bracket that would be able to mount the bucket onto any skid steer loader. The ending result was a smooth operating bucket that could slice through the debris and get the material out of the kiln to free up the tear out machine to continue its job of taking down the brick or coating.

Specifications

  • Type: standard
  • Utilization: for excavators
