Hydrive series

Article: 00053387

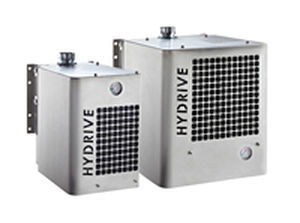

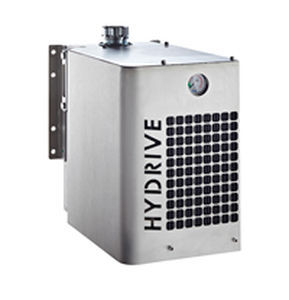

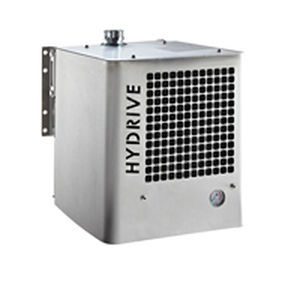

Oil cooler / hydraulic motor

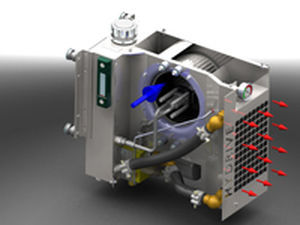

The Hydrive is an oil cooler developed by Mouvex. It is mainly used on hydraulic diver for pumps and compressors. The unit can also be utilized as an oil tank and security relief valve.

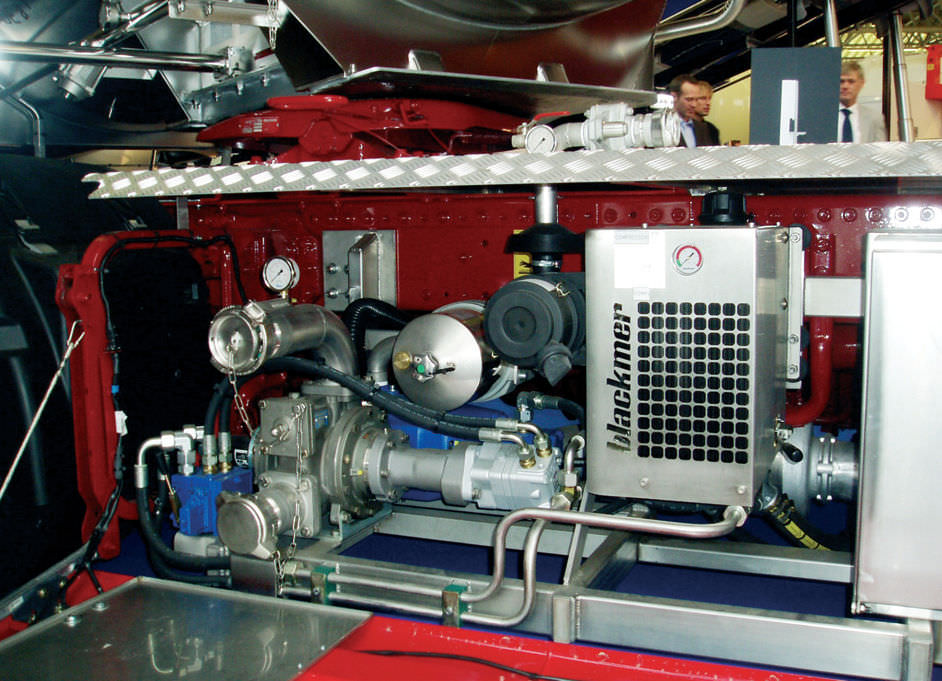

It is supplied with low weight, compact construction allowing easy installation on tractors and trucks, low noise level centrifugal fan, maximum performance, 13.5 Hp maximum heat dissipation.

The unit is further equipped with stainless steel development, adjustable security relief valve, and easy-to-read restriction gauge mounted on the front.

In addition, the framework comes with additional options including NPT or BSP flanges, control valve, and hydraulic motor adapter for Mouvex-Blackmer pumps.

Specifications

  • Fluid: oil
  • Type: hydraulic motor
  • Power: Min.: 10000 W (34121.31 BTU/h)
  • Maximum temperature: 40 °C (104 °F)
  • Flow rate: 200 l/min (52.83 us gal/min), 120 l/min (31.7 us gal/min), 55 l/min (14.53 us gal/min)
  • Pressure: Min.: 50 bar (725.19 psi)
