Article: 00062676

Forming press / hydraulic / straight-side

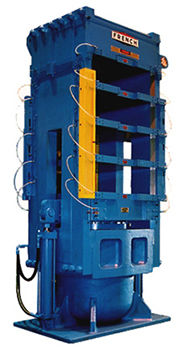

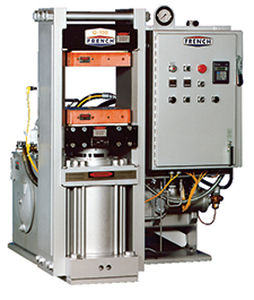

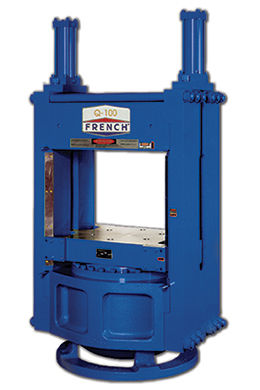

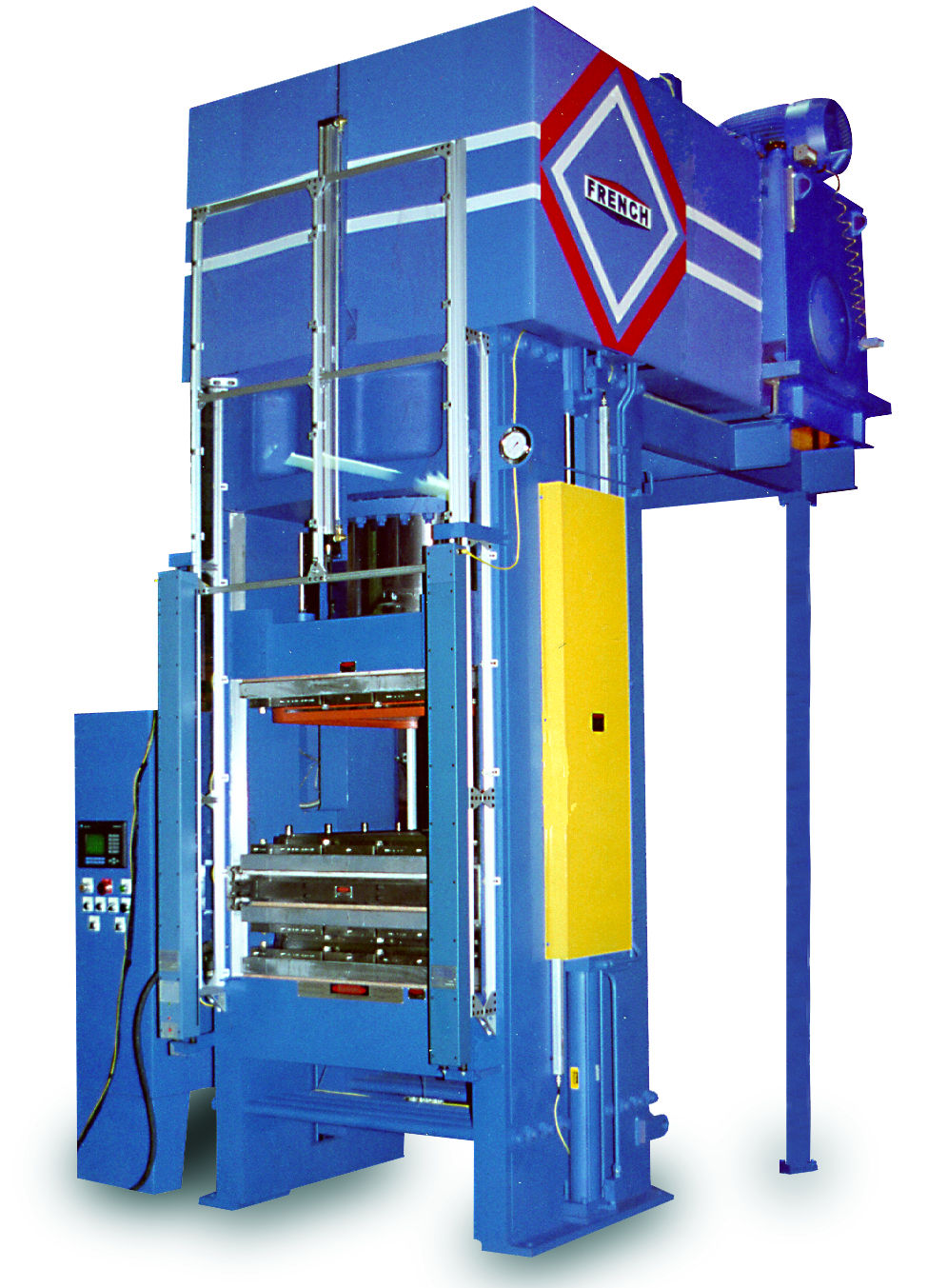

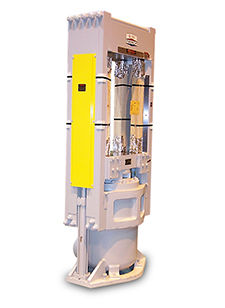

The sideplate hydraulic presses style lends itself to low deflection for finished-dimension molded parts and provides high tonnage in a compact footprint.
Only French sideplate presses feature an exclusive taper key design that forms a pre-stressed, rigid joint between the sideplates and the headblock/cylinder, eliminating small movements in the joint and the possible wear associated with that movement.
Headblock, ram caps, sideplates and hotplates are machined from solid slabs of quality steel. Flexing under the pressure of the head and ram cap is minimal because these parts are not solid and cored. Plus, these materials are rolled or forged instead of cast, to greatly diminish the possibility of hidden defects.

Specifications

  • Process type: forming
  • Operation: hydraulic
  • Structure: straight-side
  • Pressing force: Min.: 300 kN

Other items
