2-600

Article: 00101522

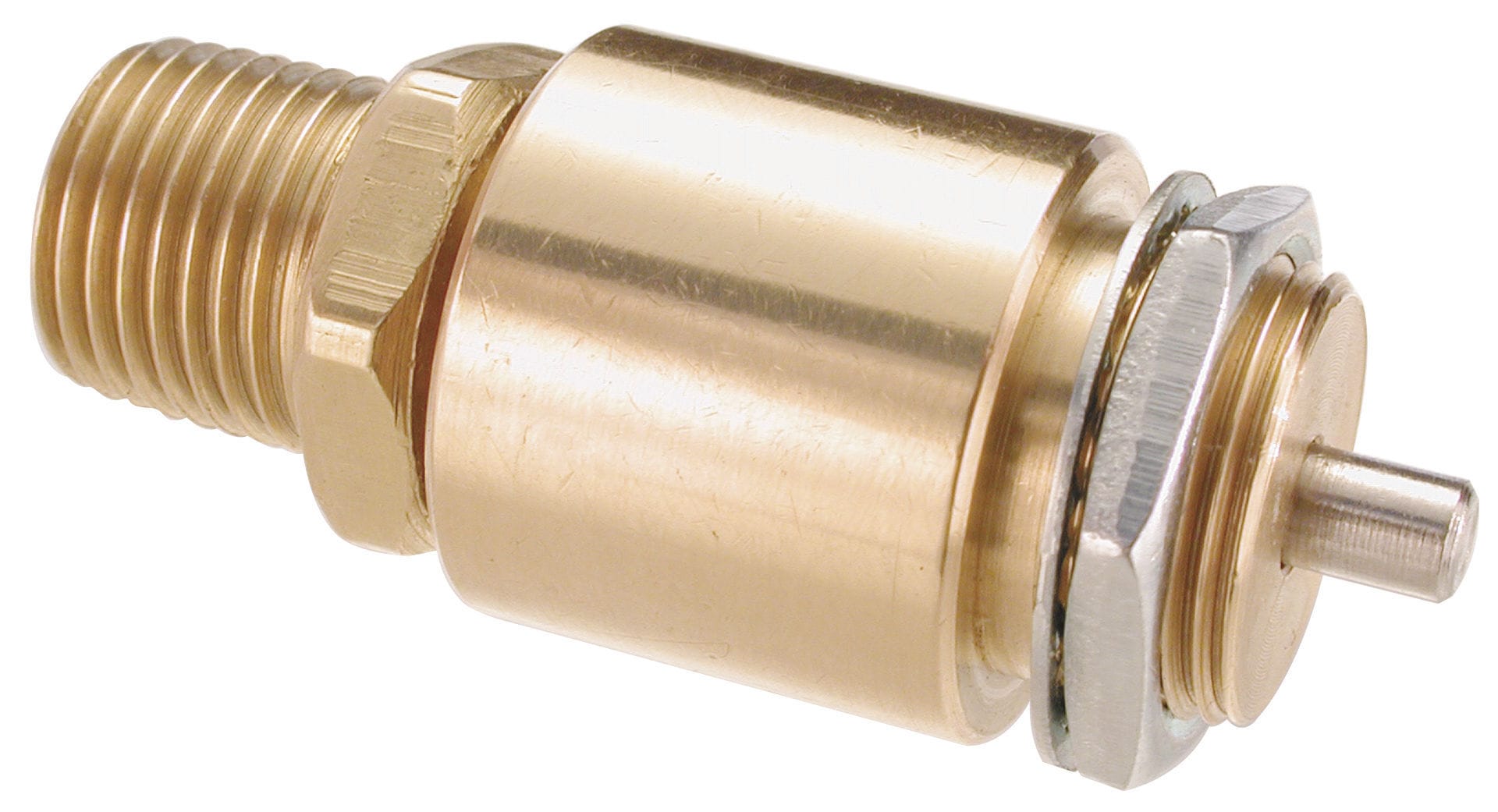

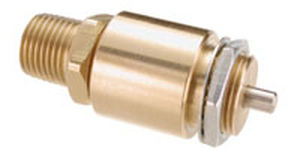

Pneumatic cylinder / single-acting / miniature

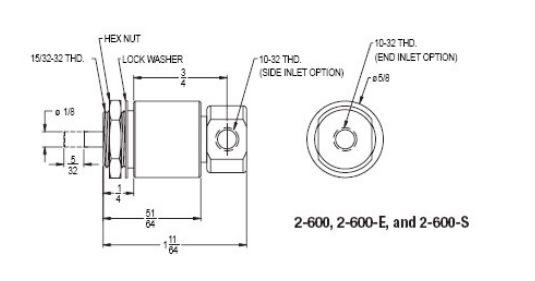

This bore air cylinder measures 7/16in and weighs approximately 31g in brass. The weight may vary slightly, depending on the configuration. Force factor is .138" in retraction and .150" in extension and the pressure range is 250psig (maximum).

Porting for internal end and side inlet is 10-32 each, or 1/8" external NPT for end inlet. Also featured are Buna-N seals. The cylinder is available with 5/32" stroke and optional spring return.

Specifications

  • Type: pneumatic
  • Configuration: single-acting
  • Other characteristics: miniature
  • Stroke: 0.15 in
  • Force: Min.: 0.14 N
