eSys-IDC4E1

Article: 00115519

32-bit microcontroller / general purpose

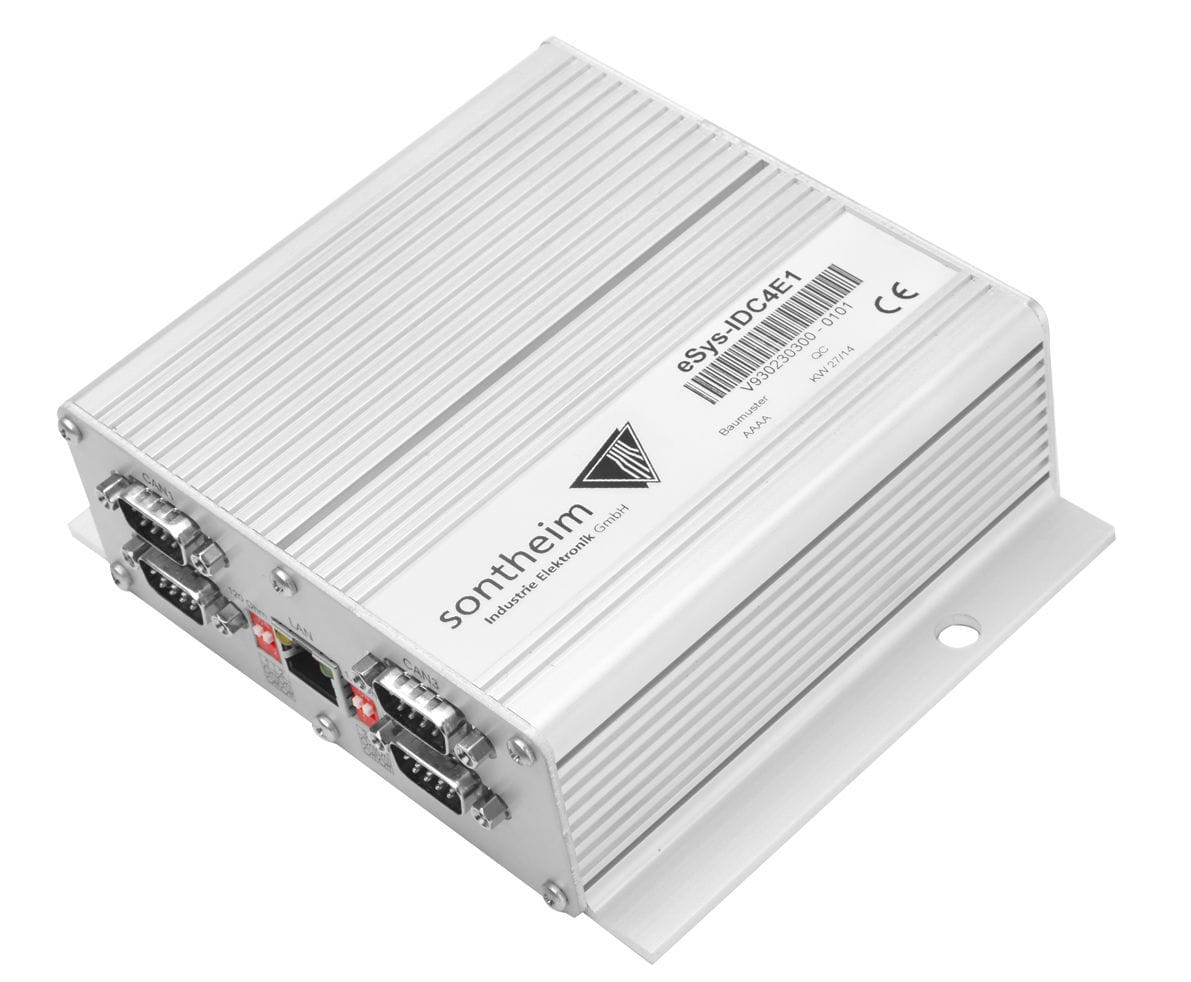

eSys-IDC4E1 offers a 32-bit microcontroller, various interfaces, and built-in diagnostics functions for high performance and a wide field of applications in industrial environments.

Our Multithread API SAE J2534-1 is attached to the hardware for free as a standardized interface and allows a quick and easy use of the module.

Gateway and bridging functions

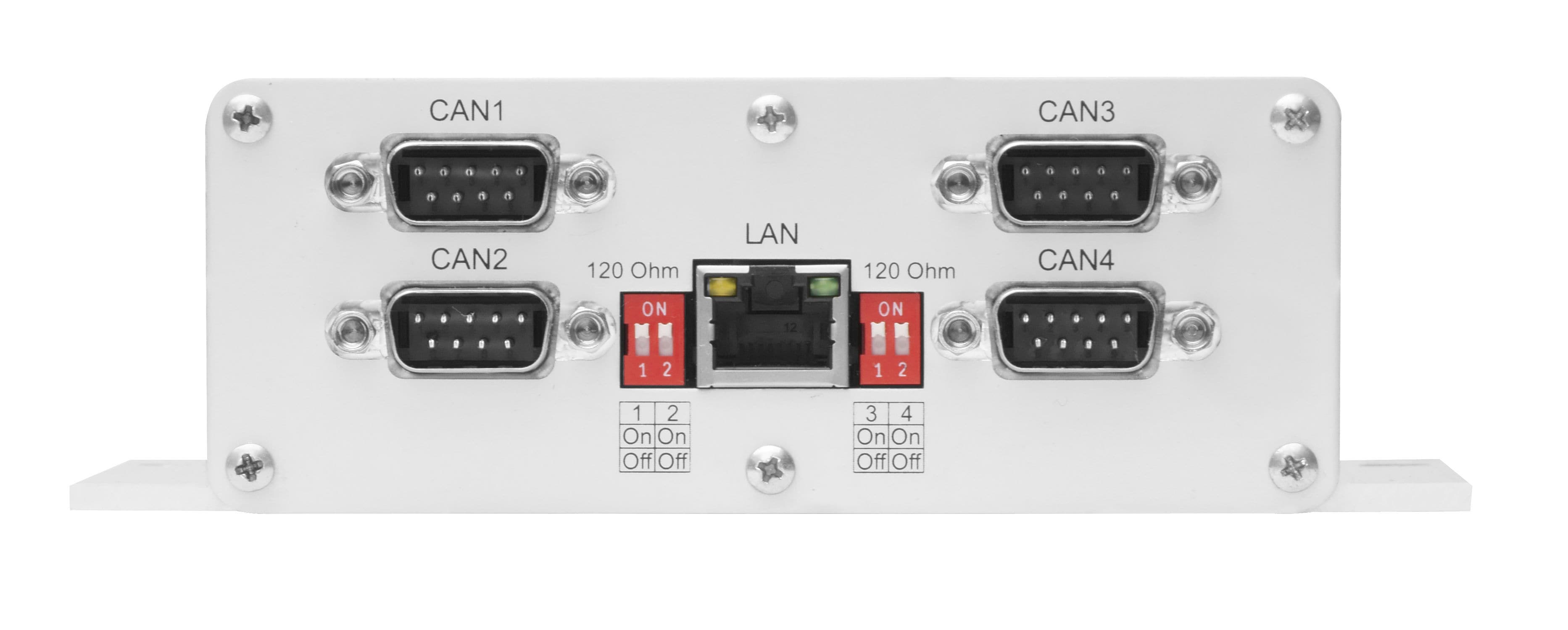

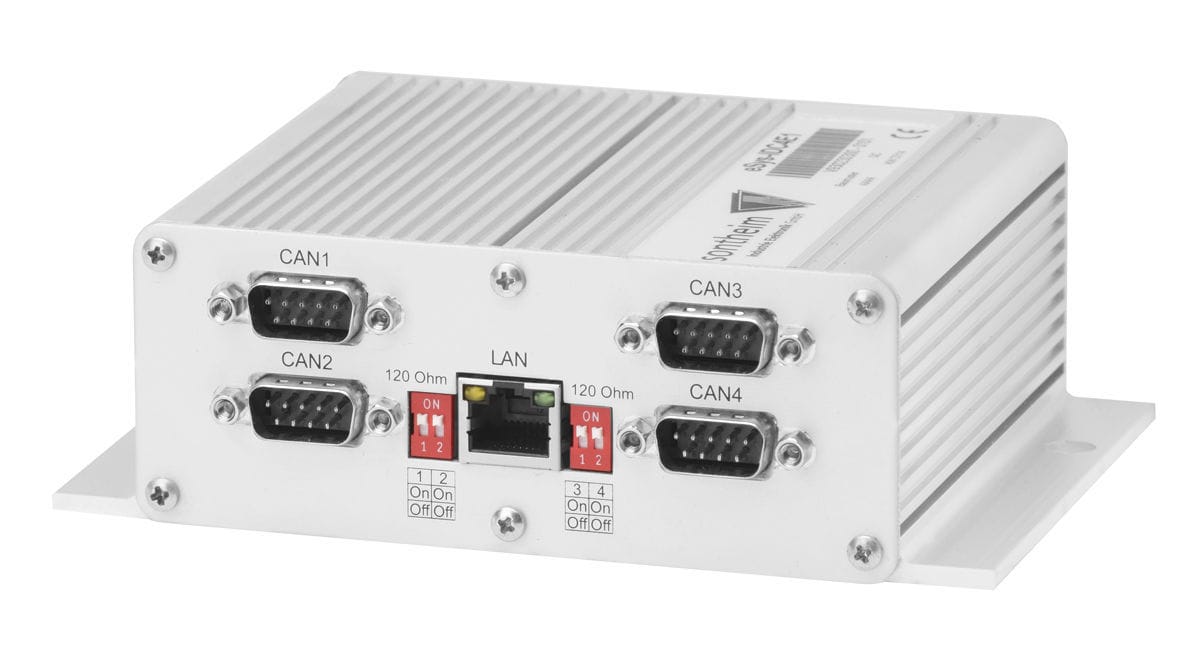

eSys-IDC4E1 allows the connection of different CAN buses over IP networks. As such, this high performance CAN-to-Ethernet Gateway provides one LAN connection and four galvanically isolated CAN interfaces. Data can quickly be transferred to a higher-level computer. In addition to the CAN-to-Ethernet Gateway function, CAN-to-CAN Bridging is also available. This enables the coupling of two CAN networks with different bit rates or protocols. CAN messages are received by a sub-network and then sent from the other subnet. eSys-IDC4E1 is also capable of executing translation and filter rules, such as protocol adaptation between the sub-networks.

Specifications

  • AAAAtype: 32-bit
  • Applications: general purpose
