Resistors

Pickering Interfaces

  • Resistor array

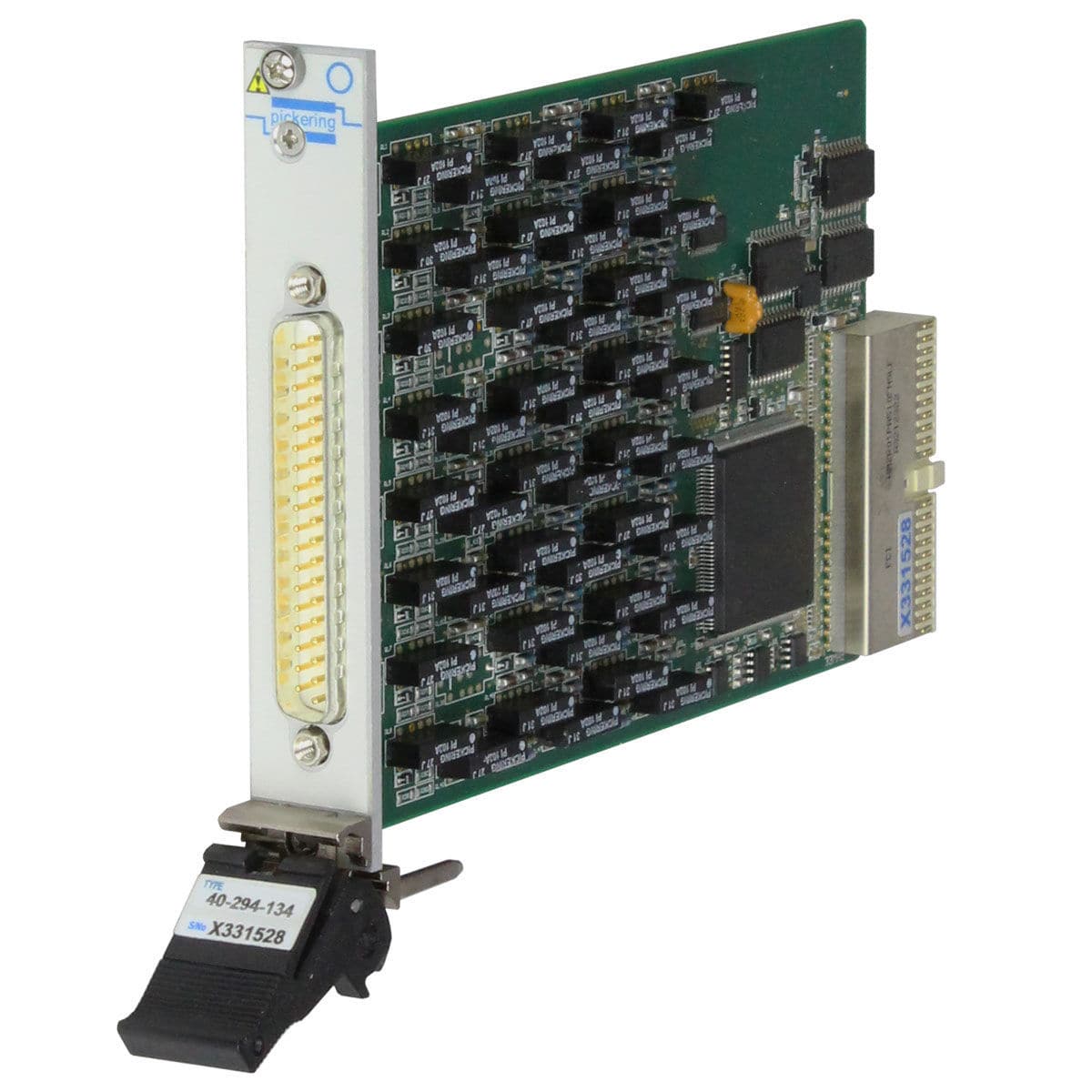

40-294-134

Article: 00118659

Resistor array

These PXI Programmable Resistor modules are available with either two channels of 16-bit, two channels of 12-bit or four channels of 8-bit resistor chains in a single 3U PXI module. The module is ideal for simulating sensors for control and management systems under test, allowing the user to verify system response in design verification or manufacturing test applications.

The 40-294 can also be supplied with 8xSPST reed relays. These uncommitted relays have a number of uses, including extending the resistor chain, adding additional fault conditions and providing the functionally of a resistor module and an uncommitted relay module in a single PXI slot.

Associated calibration cable is available here:
40-975-037-02-1m >>

Key Features
Dual or Quad Resistor Module
Fitted With Pickering Reed Relays, Providing
Superior Speed of Operation and Module Life
Short and Open Simulation
Simple Software Control Through Resistance Calls
Provides Fully Isolated Variable Resistors
Option of Added SPST Uncommitted Relays
Option of Increasing The Length of Resistor Channels
Special Versions With Non Standard Resistors
Built To Order
VISA & Kernel Drivers Supplied for Windows
XP/Vista/7/8 Plus Soft Front Panel
Supported by PXI or LXI Chassis
3 Year Warranty

Specifications

  • Resistance: Min.: 3 Ohm
  • Power rating: 0.5 W (0 hp)
