4653

Article: 00119019

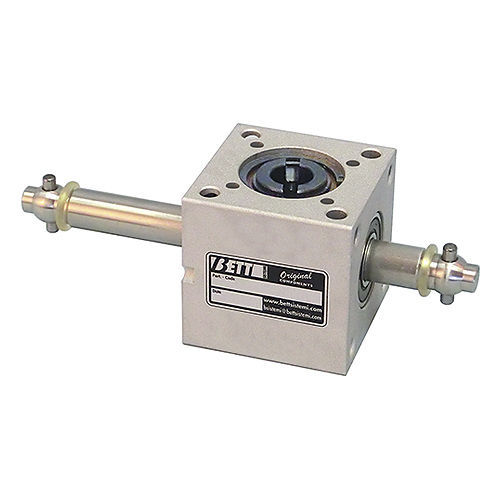

Hollow-shaft right-angle gearbox

Code: ?4653

Family: Angular idlers

Name: 3 track square-section mini angular idler

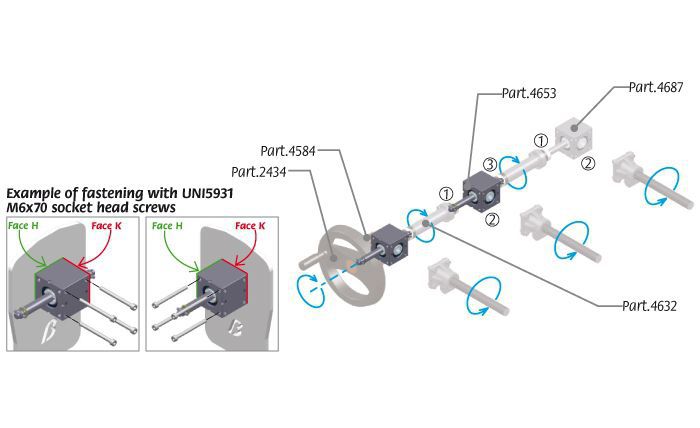

Use: allows idling and synchronising motion transmission ? ideal to connect the format changeover bridges to each other.
Reduction ratio i=1.
State of supply: 1 aluminium idler body, 1 stainless steel shaft, 2 burnished steel gears, 2 UNI6364 cylindrical pins, 3 bearings with sliding gaskets, 2 polyurethane O-rings, galvanised steel nuts and bolts.

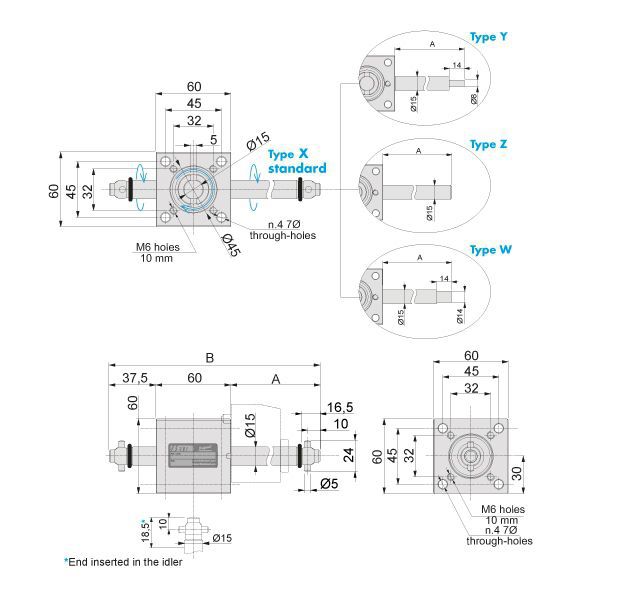

Characteristics: flangeable on 4 faces.
Operation: STEP BY STEP (NO continuous operation).
Max. 70 rpm; max time: 1 (min; on/off ratio=1/60).
Maintenance: not required, lubricated for life.
Standard pack: 1 piece.

Specifications
