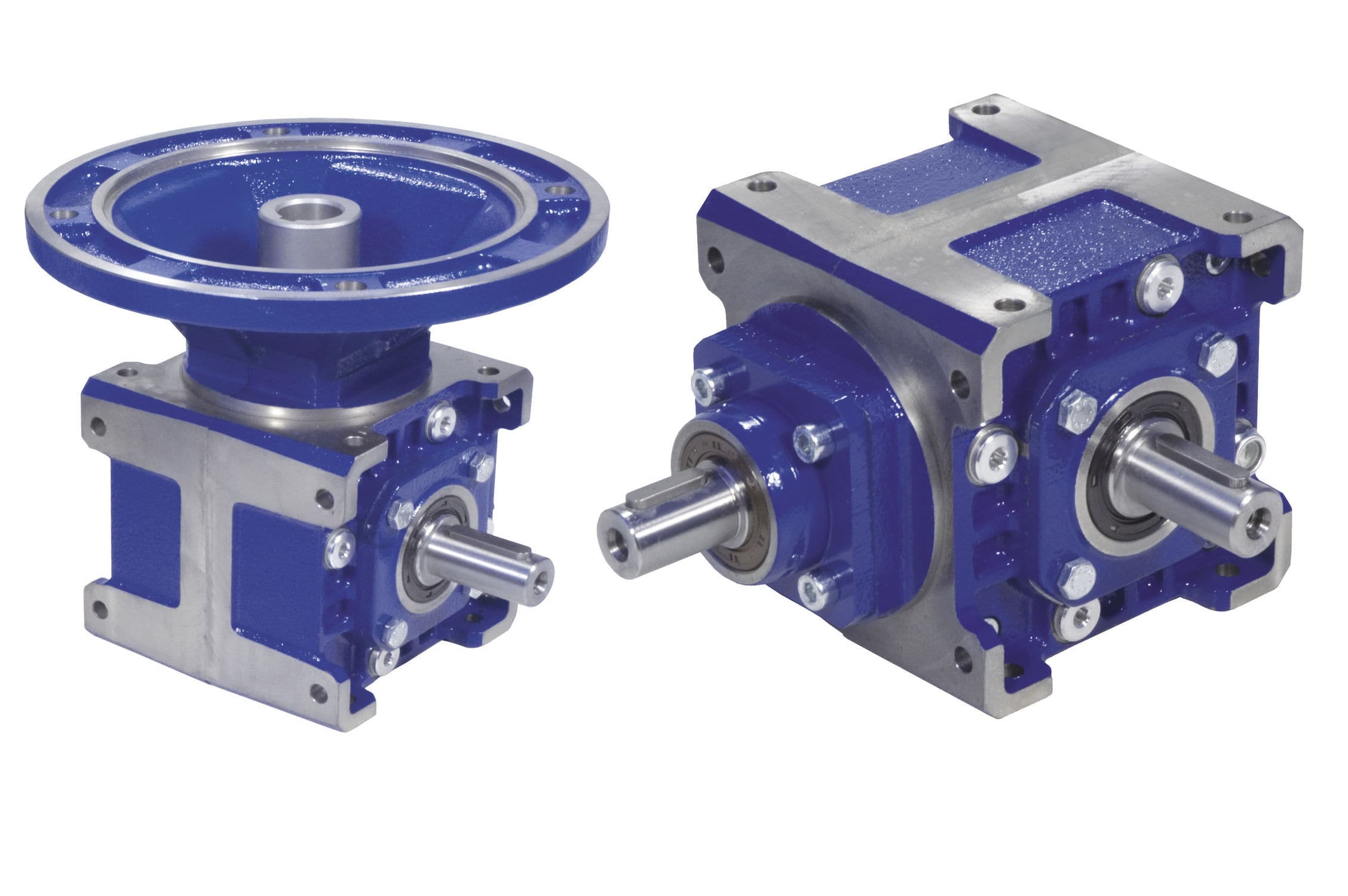

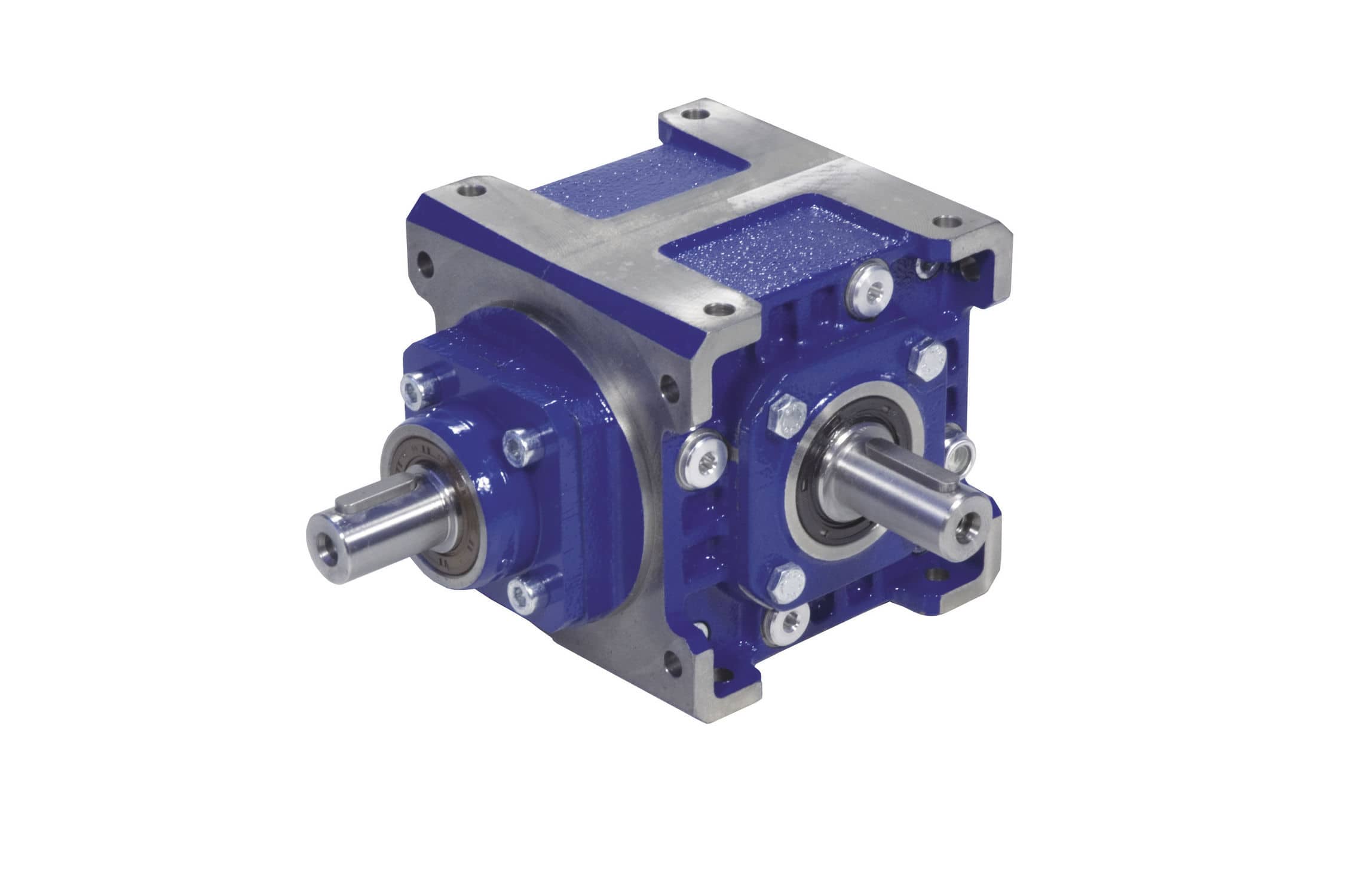

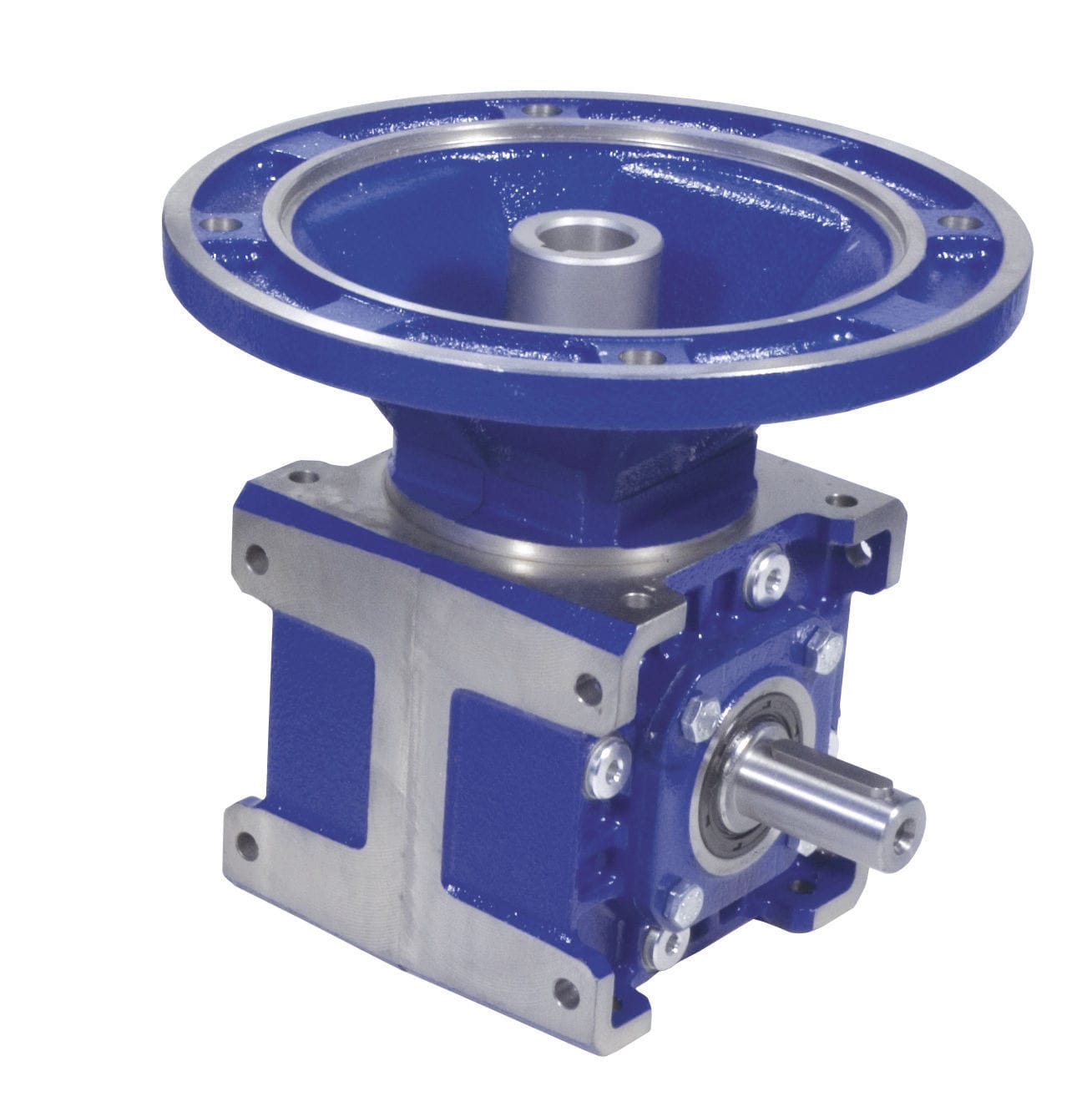

Right-angle bevel gearbox

NEW FOR 2015!

ENGRENAGES HPC has added new bevel geared right angled (T or L) gearboxes to its already wide range.
With a choice of 3 ratios and 3 different type of output shaft (bored, projecting on one side, projecting on both sides), the range is suitable for use in many industrial applications.

General characteristics:
- Cast steel housing EN GJL 200 UNI EN 1561
- GLEASON bevel gears with a precision ground profile in 16CrNi4 or 18NiCrMo5 steel
- Gearbox housing, flanges, bells and cover are painted blue (RAL 5010 )
- Max speed 1,400 rpm
- Thermal power from 4.5kW to 10.3kW (heat dissipation capacity)
- Output backlash 12? to 20?
- Torque up to 182Nm

Key features:
- Easy to install
- The lubrication chamber is designed to offer maximum heat dissipation and the best lubrication of all internal elements
- Use of high quality bearings on all shafts ensures an extended working life even when subjected to high radial and axial loads
- The input flange, sense of rotation and mounting position ensure that these gearboxes are suitable for the widest range of applications

Typical applications
- Machine tools, conveyors for heavy loads, special machines, packaging machines
