Calibrating

Article: 00121172

Calendering machine

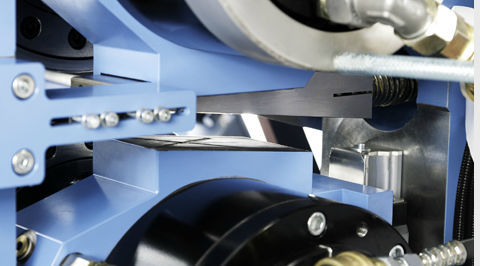

KKA calibrating calenders (optionally available in heavy-duty or medium-duty) are used to compress porous, web type substrates to achieve defined thicknesses and/or defined volumes. Unheated and heated high-performance rollers whose surface is finished in accordance with the product requirements are used in this process. The high linear loads are produced through pneumatic or hydraulic pressure application by observing exact nip geometries.
technical data:

line load: 250 N/mm
roller surface width: 500 mm
true running accuracy of the rollers
1.5 µm at 90°C (prod.-temperature)
roller temperature max. 150°C
roller surface: hardened, hard
chromium-plated and polished
(Ra 0.03 ? 0.05 µm)
roller adjustment 40 - 400 µm

Specifications
