Vertical milling machines, vertical machining centers 4-axis

TEKNA

  • CNC machining center / 4-axis / vertical / with gantry loader
  • CNC machining center / 4-axis / vertical / with gantry loader

TKE 944

Article: 00144399

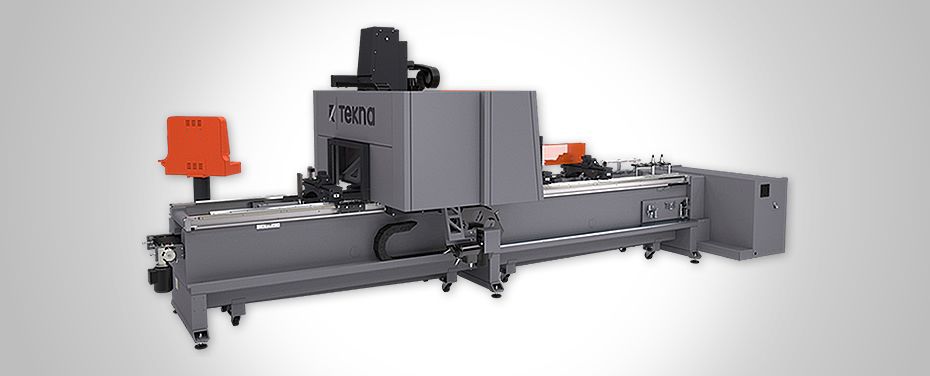

CNC machining center / 4-axis / vertical / with gantry loader

4-axis CNC machining centre with moving gantry structure, designed for drilling, milling, thread cutting and cutting at angle any from -90° to +90° on bars or workpieces of aluminium, PVC, light alloys in general and steel. The moving part of the machine consists of a gantry with precision rack and pinion drive. The 5,5 kW electrically-driven spindle with ISO 30 tool holder allows machining operations, including heavy-duty work, with optimum results in terms of speed and accuracy. The machine can be used in double mode (7000 model) so as to minimize machine downtime, as it is possible to change the workpiece (load/unload) and the automatic setting of the vices in "concealed" time. It is also possible to load and consequently machine different workpieces between the two work areas. The automatic tool magazine is available in a fixed solution on board the machine with 4/8 places, recommended for single place machining. Otherwise an 8-places automatic magazine on board the carriage, ideal to allow a faster tool change and useful for the double mode machining, is available. The gantry is provided with a guard which, besides protecting the operator, also reduces the noise impact on the environment.

Specifications

  • Control type: CNC
  • Number of axes: 4-axis
  • Spindle orientation: vertical
  • Other characteristics: with gantry loader, for steel, for aluminum, for PVC
  • Power: 5.5 kW (7.38 hp)
