• Fiber optic amplifier / rack-mounted

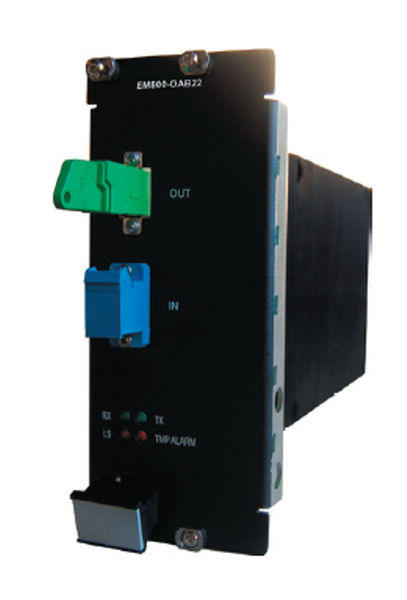

max. 24 dBm | EM800 - OABT/OAIT

Article: 00006002

Fiber optic amplifier / rack-mounted

The LambdaDriver® Optical Amplifi er modules are a family of EDFA (Erbium Doped Fiber Amplifi er) devices frequently used in DWDM Metro and Long-Haul applications where optical signals amplifi cation is
required in order to cover long span transmission.
The optical design, coupled with sophisticated control circuitry, allows these Optical Amplifi ers to operate in a fl exible and user confi gurable variable gain mode.
Accordingly, the same module can be used either as a Booster OA or an In-Line OA making the WDM network design an easier task. A signifi cant advantage of this type of OA is the capability to adjust the optical gain in a live network without compromising gain fl atness over the entire C-band.

Gain settings can be done remotely via the Lambda Driver management module and NMS platform.
Monitoring of input and output signal levels as well as temperature and signal level alarms are provided.
Several models of Tunable Gain Optical amplifi ers are provided with optical output power ranging from
+17dBm to +24 dBm and also with integrated mid-stage interface options for Dispersion Compensation Module (DCM) insertion.

Specifications

  • Type: fiber optic
  • Configuration: rack-mount
