XT960

Article: 00006217

Load cell amplifier / analog

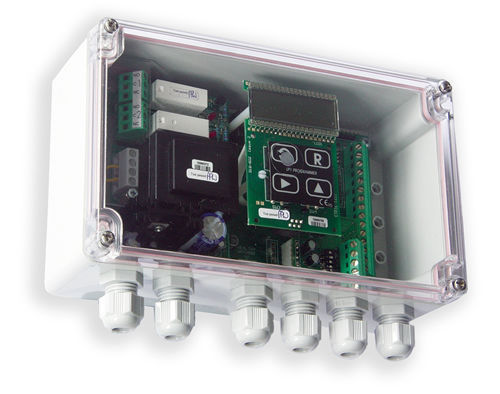

The XT960 load cell amplifier is available in surface mount form, with an ABS, Stainless Steel or Die Cast case (all rated to IP65).

Operating from AC or DC power and providing 4-20mA and 0-10V analogue outputs as standard, the amplifier can be calibrated in one-pass and quickly set up for use. Options consist of 2 relay set
points, RS232 and RS485 communications and a transparent plastic lid to view the LCD display from outside the enclosure.

3 configurable digital inputs are available, for e.g. auto-tare, print, peak hold, reset or other functions.

Make an enquiry about this load cell amplifier.
Key features:

Internal 4.5 digit LCD digital display
Digital programming and calibration
IP65 surface mount ABS case
Operates on 110-120 VAC, 220-230 VAC or 9-32 VDC
Optional serial communications (RS232, RS485, MODBUS RTU) and 2 set points

Specifications

  • Type: analog
  • Product applications: for load cells
  • Voltage: Min.: 0 V
  • Current: Min.: 4 mA
