TNE series

Article: 00009319

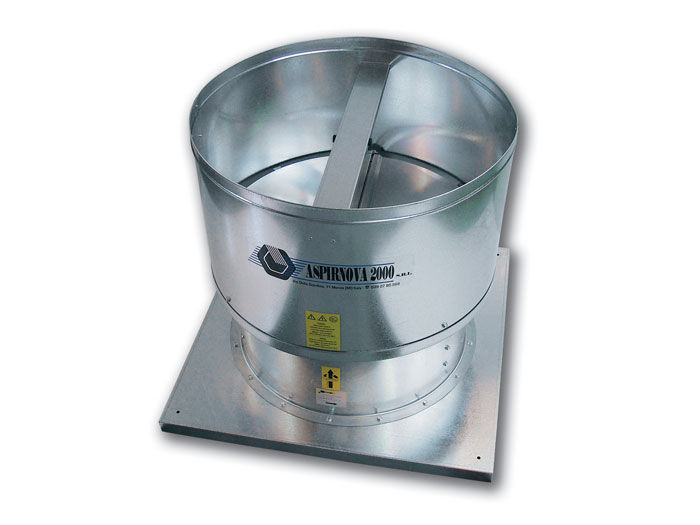

Axial roof fan / fume exhaust / industrial


The range of these fans includes 10 models, suited to extract vitiated air from industrial factory units, ware hauses etc?

In all applications that require large airflow with low pressure, working range from -20 °C to +70 °C.


Structure composed of base with cylindrical ring made of galvanized steel, helical impeller with wing-like

blades made of propylene, hub in aluminium die-casting. Closed electric motor with outside ventilation.

Protection IP55 class F ? voltage 230 V ? 50 Hz for single phase motor with permanent condenser installed

voltage 230/400 V ? 50 Hz three-phase motor single speed.

Voltage 400 V ? 50 Hz three phase motor double speed.

Galvanized wind proof belt, aluminium prof gravity shutter protection grid between impeller and shutter.


-supporting frame to wall ? silencer.


  • Configuration: axial
  • Function: fume exhaust
  • Application: industrial
